Dear sirs !

  We Offer you the catalogue of engine Cummins KTA-50 C1600 applied on dump-body trucks BelAZ and other technics.

Please, send the information on your requirements.

THE BASE INFORMATION ON THE ENGINE

Serial number of the engine 33152654

№ factory order SO70317

Factory DAV - DAVENTRY ENGINE PLANT

Date of manufacturing 04 Sep 2002

Module ECM Not Available For This Code

№ the fuel pump under the catalogue 3080521

Calibration of fuel pump BD76

Микрофиша K50

№ engine D283018CX02 complete sets

№ the list of control details CPL2315

The Name of marketing model KTA50-C1600

The Name of served model K50

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

$Комплект linings of one head

3800729

Set, Single Head Set

1

100478

The Sealing ring

12

131026

The Sealing ring

12

206277

The Lining of an inlet collector

6

206279

Connection with a lining

1

206446

Gasket, Wtr Trf Connection

1

206576

The Lining турбонагнетателя

1

207038

The Sealing ring

1

207244

Seal, Injector

1

3001340

The Sealing ring

12

3023066

The Sealing ring

4

3026421

The Sealing ring

2

3028291

The Sealing ring

5

3037821

The Lining of a final collector

6

3084539

The Sealing ring

12

3634664

The Lining of a head of the block of cylinders

1

3179027

Connection with a lining

3

3629140

Gasket, Rocker Lever Cover

1

3630839

Gasket, Rkr Lever Housing

1

3818885

The Sealing ring

2

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

$Верхний the complete set of linings of the engine

3800731

Set, Upper Engine Gasket

1

131026

The Sealing ring

10

201048

Connection with a lining

4

201049

Connection with a lining

2

206277

The Lining of an inlet collector

16

206443

Gasket, Thermostat Housing

2

206460

Connection with a lining

1

207515

Connection with a lining

1

216187

The Sealing ring

2

3001340

The Sealing ring

32

3003016

The Sealing ring

10

3008710

The Sealing ring of rectangular section

8

3011580

Gasket, Aftercooler Cover

4

3014304

The Sealing ring of rectangular section

32

3014449

Фланцевая a lining

4

3023066

The Sealing ring

4

3023129

Dustproof consolidation

3023130

Dustproof consolidation

4

3026421

The Sealing ring

8

3028291

The Sealing ring

32

3037821

The Lining of a final collector

16

3084539

The Sealing ring

32

3634664

The Lining of a head of the block of cylinders

16

3175517

Фланцевая a lining

1

3175545

The Sealing ring

6

3175705

Seal, Ferrule

24

3171368

The Lining турбонагнетателя

2

3179026

Connection with a lining

4

3179027

Connection with a lining

8

3627961

Thermostat Consolidation

4

3629140

Gasket, Rocker Lever Cover

16

3630839

Gasket, Rkr Lever Housing

16

3818885

The Sealing ring

2

4066112

The Sealing ring

6

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

$ the Bottom complete set of linings of the engine

3804300

Set, Lower Engine Gasket

1

S 1003 A

The Condensing washer

4

43696 A

The Sealing ring

2

67946

The Flat washer

4

1 1/32 Inch.

68908

The Lock plate

14

70415

The Sealing ring

2

108172

The Sealing ring

1

145507

The Sealing ring

2

145528

The Sealing ring

2

145529

The Sealing ring

1

145530

The Sealing ring

1

145550

The Sealing ring

2

145581

The Sealing ring

1

145586

The Sealing ring

1

145600

The Sealing ring

1

145613

The Sealing ring

1

151355

The Lock plate

2

205571

Gasket, Oil Slinger

1

206193

Gasket, Water Pump

1

206407

Gasket, Hand Hole

1

206416

Gasket, Support

1

206421

Gasket, Gear Housing

1

206455

Gasket, Water Pump

1

206457

The Sealing ring

1

207551

The Sealing ring

1

212161

The Sealing ring

16

3007441

The Sealing ring

16

3000632

Connection with a lining

1

3005939

A cover Lining

1

3005940

Gasket, Gear Housing

1

3007512

The Sealing ring

1

3008921

Gasket, Prs Rlf Valve Body

1

3009323

Gasket, Water Header Cover

1

3009324

Gasket, Water Header Cover

4

3014449

Фланцевая a lining

1

3016792

The Epiploon

1

3026391

The Sealing ring of rectangular section

1

3026392

The Sealing ring of rectangular section

2

3031544

The Sealing ring of rectangular section

1

3040721

Gasket, Cam Fol Housing

16

3040722

Gasket, Camshaft Cover

2

3043211

Gasket, Oil Pan

4

3043213

Gasket, Oil Pan

1

3046852

Gasket, Acc Drive Support

1

3069102

Gasket, Air Compressor

1

4026171

Gasket, Fuel Pump

1

3160924

Dustproof consolidation

1

3175032

Gasket, Crankcase Breather

2

3175856

Gasket, Hand Hole

8

3177108

The Lining of a head of the filter

2

3177160

Gasket, Gear Cover

1

3178076

Gasket, Gear Housing

1

3179035

Gasket, Wtr Trf Connection

1

3200287

Seal, Keyway

2

3201125

The Sealing ring

2

3331663

Dustproof consolidation

1

3628894

Dustproof consolidation

1

3628895

The Epiploon

1

3628973

A cover Lining

1

3629141

The Lining of a cover of the oil filter

1

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

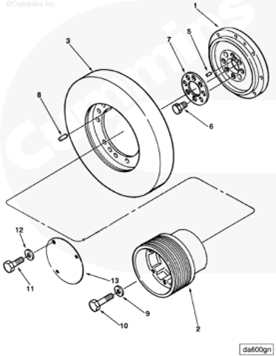

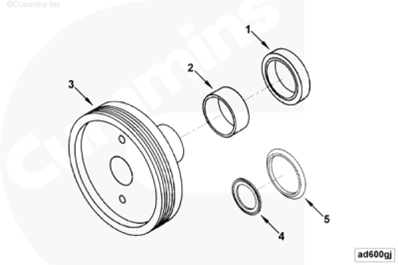

AD6003-03

The Pulley of a drive of auxiliary units

Two groove accessory drive

the engine.

1

S 316

Key, Plain Woodruff

1

2

3200287

Seal, Keyway

1

3018761

Pulley, Accessory Drive

1

3

190397

Sleeve, Wear

1

4

3015321

Pulley, Accessory Drive

1

5

3628894

Dustproof consolidation

1

6

3628895

The Epiploon

1

3803852

Kit, Kv Pose Seal

1

190397

Sleeve, Wear

1

3200287

Seal, Keyway

1

3628894

Dustproof consolidation

1

3628895

The Epiploon

1

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

BP6083-01

The Casing of pushers of a camshaft

1

205439

The Spring ring

32

2

3039163

Lever, Cam Follower

16

3

205438

Lockwire, Cam Roller Pin

1

4

4009247

The Pin of a roller of a pusher of a camshaft

1

5

3016825

The Roller of a pusher of a camshaft

1

6

213559

Socket, Cam Follower

1

7

3039164

Lever, Cam Follower

32

205069

Lever, Cam Follower

1

3

205438

Lockwire, Cam Roller Pin

1

6

213559

Socket, Cam Follower

1

8

4009248

The Pin of a roller of a pusher of a camshaft

1

9

3016826

The Roller of a pusher of a camshaft

1

10

AR10626

Shaft, Cam Follower

16

11

205227

The Broad stopper

32

12

3009631

Cover, Camshaft

16

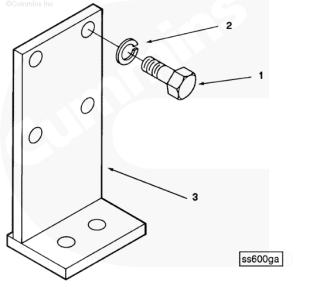

$MOUNTING PARTS

13

3177760

The Bolt with шестигранной a head

2

3/8 - 16 X 2 1/2 Inch.

14

S 103 D

The Bolt with шестигранной a head

32

3/8 - 16 X 1 1/4 Inch.

15

S 126

The Bolt with шестигранной a head

32

3/8 - 16 X 2 1/2 Inch.

16

3002993

The Round pin

2

17

3040721

Gasket, Cam Fol Housing

16

18

S 604

The Lock washer

64

3/8 Inch.

19

3628902

The Flat washer

64

$PUSH RODS

20

3017961

A pusher Bar

16

21

3057139

A pusher Bar

32

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

BP6083-01

Fastening of gear wheels of a camshaft

1

S 112

The Bolt with шестигранной a head

4

3/8 - 16 X 1 Inch.

2

68908

The Lock plate

4

3

3010595

The Bolt with not dropping out washer

6

3/8 - 16 X 1 Inch.

4

3040722

Gasket, Camshaft Cover

2

5

207373

Cover, Camshaft

2

6

3628823

The Intermediate gear wheel

1

3628799

The Intermediate gear wheel

1

7

3004686

The Plug

1

8

3004683

The Intermediate gear wheel

1

3004594

The Intermediate gear wheel

1

7

3004686

The Plug

1

9

130083

The Persistent bearing

4

10

3628902

The Flat washer

6

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

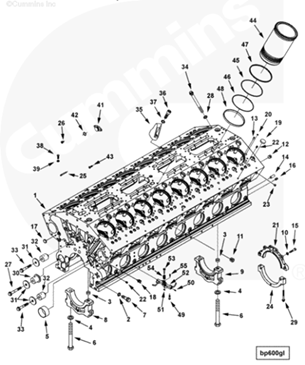

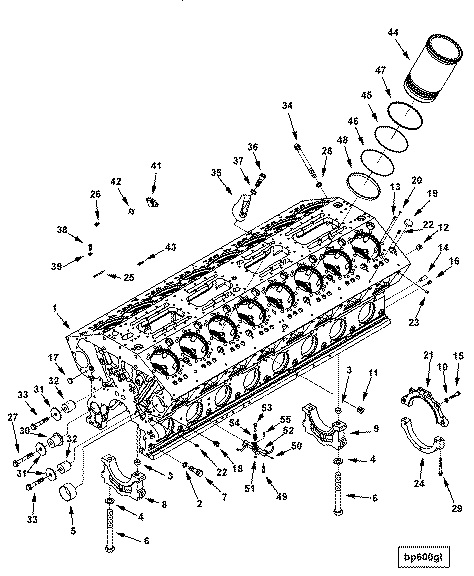

BP6083-03

The Block of cylinders

KTA50 base parts for use

without rear gear train.

Has no provisions for later

adaptation (the block is not

machined to permit mounting).

For use with KTA50-C (1600

BHP) with STC and outboard

aftercooling only.

Includes standard K50 water

pump.

Option has modified plumbing

to allow lubrication of

mounted air starter.

This engine has KV

diagnostics special for

Belaz.

3178803

The Block of cylinders

1

1

3178910

The Block of cylinders

1

2

139990

The Flat washer

18

3/4 Inch.

3

3176857

The Round pin

9

4

3025485

The Flat washer

18

5

205230

The Plug

34

6

3628452

The Bolt with шестигранной a head

18

7

205584

The Bolt with a 12-faced head

18

3/4 - 10 X 2 1/4 Inch.

8

206587

The Cover of the radical bearing

7

9

206588

The Cover of the radical bearing

2

10

S 610

The Lock washer

10

7/16 Inch.

11

3628608

The Trumpet stopper

4

12

3628607

The Trumpet stopper

1

3/4-14

13

4016364

The Adjusting pin

32

14

70662

The Adjusting pin

2

15

106069

The Bolt with шестигранной a head

6

7/16 - 14 X 2 Inch.

16

148582

The Adjusting pin

2

17

175830

The Broad stopper

12

18

3629497

Draincock

4

19

4017621

The Broad stopper

21

20

206742

The Broad stopper

16

21

3000138

Support, Bearing

1

22

3628605

The Trumpet stopper

18

1/4-18

23

3002993

The Round pin

32

24

3175281

Support, Bearing

1

25

3176649

Seal, Tamper Proof

16

26

S 955

Bushing, Reducing Pipe

1

27

3177443

The Bolt with a flange and шестигранной a head

1

5/8 - 18 X 4 1/2 Inch.

28

205059

The Flat washer

96

3/4 Inch.

29

205199

The Bolt with a 12-faced head

2

3/8 - 16 X 3 1/2 Inch.

30

3178450

The Intermediate shaft

1

31

3178457

The Flat washer

3

5/8 Inch.

32

3033853

The Intermediate shaft

2

33

3177945

The Bolt with a flange and шестигранной a head

2

5/8 - 18 X 3 3/4 Inch.

34

3032633

The Bolt with a 12-faced head

96

3/4 - 16 X 8 Inch.

35

205684

The Elevating arm

4

36

206028

The Bolt with a face head

4

3/4 - 10 X 2 1/4 Inch.

37

3629962

The Flat washer

4

38

S 112

The Bolt with шестигранной a head

12

3/8 - 16 X 1 Inch.

39

S 604

The Lock washer

12

3/8 Inch.

41

3631471

Adapter, O Ring

6

42

3631474

The Sealing ring

6

43

S 186

The Bolt with шестигранной a head

16

5/16 - 24 X 1 Inch.

3007525

Kit, Liner

16

Standard

44

3022157

Liner, Cylinder

1

45

3014668

Seal, D Ring

1

46

3011076

Seal, D Ring

1

47

3081489

The Epiploon

1

48

3011884

Insert, Liner

1

3019150

Insert, Liner

A/R

3021148

Insert, Liner

A/R

$CYLINDER LINER (O/S)

3012611

Kit, Liner

A/R

3012612

Kit, Liner

A/R

3801268

Kit, Liner

A/R

3801269

Kit, Liner

A/R

$LINER SHIMS

205741

The Adjusting lining

A/R

205742

The Adjusting lining

A/R

205743

The Adjusting lining

A/R

205744

The Adjusting lining

A/R

205745

The Adjusting lining

A/R

$PISTON COOLING NOZZLE

49

3178947

The Bolt with шестигранной a head

16

5/16 - 18 X 1 1/4 Inch.

3179664

Valve, Piston Cooling

8

50

3176552

Seal, Tamper Proof

2

51

69204 D

The Spring ring

1

52

3630068

Body, Piston Cooling Valve

1

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

BP6083

The Handle for проворачивания a cranked shaft

3201740

Drive, Engine Barring

1

1

S 306

Key, Plain Woodruff

1

2

102827

The Sealing ring

1

3

169834

The Clip

1

4

206090

The Spring ring

1

5

206091

Gear, Engine Barring

1

6

206092

The Press spring

1

7

206093

Housing, Engine Barring

1

8

3201739

Shaft, Barring

1

9

S 116

The Bolt with шестигранной a head

3

5/8 - 11 X 1 1/2 Inch.

10

S 603

The Lock washer

3

5/8 Inch.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

BP6083-02

Маслоохладитель

1

3627295

Теплообменный a cooler element

4

2

212161

The Sealing ring

16

3

3630969

Gasket, Lub Oil Clr Cover

8

4

3633479

The Counternut

8

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

BP6083-02

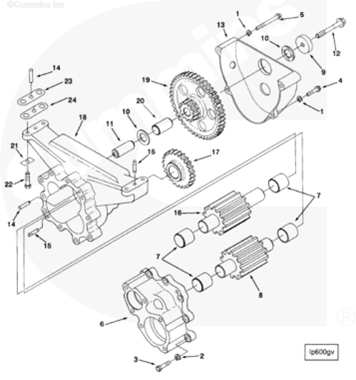

The Oil pump

3627921

The Oil pump

1

Recon equivalent 3627921 RX

1

S 604

The Lock washer

4

3/8 Inch.

2

S 610

The Lock washer

10

7/16 Inch.

3

197032

The Bolt with шестигранной a head

10

7/16 - 14 X 1 1/2 Inch.

4

199919

The Bolt with a 12-faced head

2

3/8 - 16 X 1 1/2 Inch.

5

205377

The Bolt with a 12-faced head

2

3/8 - 16 X 3 1/4 Inch.

6

3628367

The Cover of the oil pump

1

7

3627300

The Plug

4

8

3029687

Gear & Shaft

1

3628278

Gear, Lub Oil Pumping

1

3029689

Shaft, Lub Oil Pump

1

9

3029701

Retainer, Shaft

1

10

3029702

The Persistent bearing

2

11

3029708

The Intermediate shaft

1

12

3030518

The Bolt with a flange and шестигранной a head

1

1/2 - 13 X 3 9/16 Inch.

13

3627912

The Cover of the oil pump

1

14

69519

The Adjusting pin

2

15

107948

Dowel, Diamond

2

16

3029684

Gear & Shaft

1

3628277

Gear, Lub Oil Pumping

1

3029686

Shaft, Lub Oil Pump

1

17

3627834

Gear, Lubricating Oil Pump

1

18

3627915

The Case of the oil pump

1

19

3633331

Gear, Lubricating Oil Pump

1

20

3029700

The Plug

1

21

149134

Plate, Lock

4

22

S 113

The Bolt with шестигранной a head

4

1/2 - 13 X 1 1/2 Inch.

23

3026312

The Adjusting lining

2

24

3026313

The Adjusting lining

2

3803927

Kit, Lub Pump Bushing

1

3627300

The Plug

4

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

BP6083

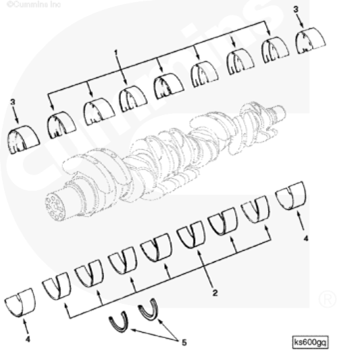

Main Bearing Shell

3018210

The Complete set of radical bearings

1

Standard

1

206580

The Radical bearing

7

2

206590

The Radical bearing

7

3

206600

The Radical bearing

2

4

206610

The Radical bearing

2

5

3000139

The Persistent bearing

2

3018211

The Complete set of radical bearings

A/R

.010 Inch Undersize

1

206581

The Radical bearing

A/R

2

206591

The Radical bearing

A/R

3

206601

The Radical bearing

A/R

4

206611

The Radical bearing

A/R

5

3001708

The Persistent bearing

A/R

3018212

The Complete set of radical bearings

A/R

.020 Inch Undersize

1

206582

The Radical bearing

A/R

2

206592

The Radical bearing

A/R

3

206602

The Radical bearing

A/R

4

206612

The Radical bearing

A/R

5

3001709

The Persistent bearing

A/R

3018213

Set, Main Bearing.030

A/R

.030 Inch Undersize

1

206583

The Radical bearing

A/R

2

206593

The Radical bearing

A/R

3

206603

The Radical bearing

A/R

4

206613

The Radical bearing

A/R

5

3034075

The Persistent bearing

A/R

3018214

The Complete set of radical bearings 0,040

A/R

.040 Inch Undersize

1

206584

The Radical bearing

A/R

2

206594

The Radical bearing

A/R

3

206604

The Radical bearing

A/R

4

206614

The Radical bearing

A/R

5

3034076

The Persistent bearing

A/R

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

BP6083-03

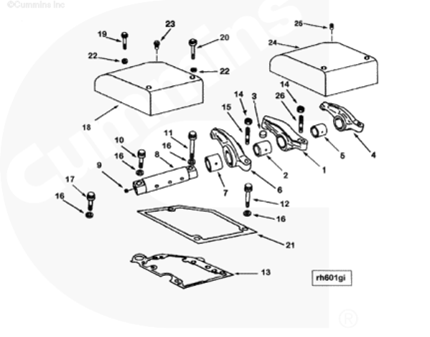

Коромысло

1

3053478

Коромысло

16

2

207226

The Plug

1

3

194037

The Nest under коромысло

1

3049437

Коромысло

1

4

3053476

Коромысло

16

5

207344

The Plug

1

208084

The Rivet

1

3049438

Коромысло

1

6

3053477

Коромысло

16

7

207344

The Plug

1

3049432

Коромысло

1

8

3176772

The Axis коромысел

16

9

203933

The Broad stopper

1

10

205393

The Bolt with a 12-faced head

16

1/2 - 13 X 2 Inch.

11

205394

The Bolt with a 12-faced head

16

1/2 - 13 X 4 1/2 Inch.

12

108602

The Bolt with шестигранной a head

80

1/2 - 13 X 3 3/4 Inch.

13

3630839

Gasket, Rkr Lever Housing

16

14

S 212

Standard шестигранная a nut

48

1/2 - 20 UNF.

15

168306

Screw, Slotted Set

32

16

205128

The Flat washer

128

1/2 Inch.

17

S 125

The Bolt with шестигранной a head

16

1/2 - 13 X 2 Inch.

18

3038938

Cover, Rocker Lever

1

19

3628196

The Bolt with шестигранной a head

16

3/8 - 16 x 2 Inch.

20

3628194

The Bolt with шестигранной a head

32

3/8 - 16 x 4 1/2 Inch.

21

3629140

Gasket, Rocker Lever Cover

16

22

3628902

The Flat washer

48

23

3628604

The Trumpet stopper

1

1/8 NPT

24

3010247

A valve Cover

15

25

S 181 B

The Bolt with шестигранной a head

15

3/8 - 16 X 1/2 Inch.

26

3047924

The Complete set of bolts with шестигранной a head

16

1/2 - 20 X 2 1/4 Inch.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

BP6083-01

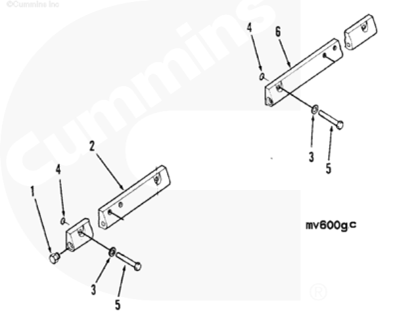

Shipping Bracket

1

S 152 A

The Bolt with шестигранной a head

8

3/4 - 10 X 2 Inch.

2

S 611

The Lock washer

8

3/4 Inch.

3

3175861

Bracket, Shipping

2

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

BP6083-04

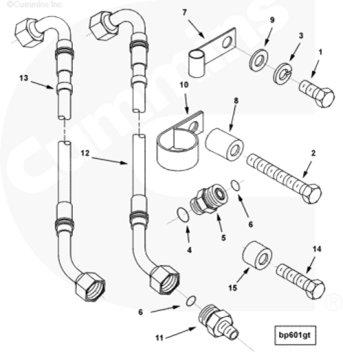

Turbocharger Oil Supply Mo

3632938

Turbo, Oil Supply Mtg

1

1

S 109

The Bolt with шестигранной a head

2

3/8 - 16 X 7/8 Inch.

2

S 199 B

The Bolt with шестигранной a head

3

3/8 - 16 3 3/4 Inch.

3

S 604

The Lock washer

2

3/8 Inch.

3081950

Муфта with an external carving

2

4

3037537

The Sealing ring

1

5

3085824

Муфта with an external carving

1

6

3922794

The Sealing ring

1

7

3175058

The Clip

2

8

3175280

Fastening распорки

3

9

3628902

The Flat washer

2

10

3629452

The Clip

3

14

108707

The Bolt with шестигранной a head

1

3/8 - 16 X 1 1/2 Inch.

15

3175056

Fastening распорки

1

3628720

Hose, Turbo Oil Supply

1

3095293

Муфта with an external carving

1

11

3627697

Муфта with an external carving

1

6

3922794

The Sealing ring

1

13

3632018

The Flexible hose

1

3628722

Hose, Turbo Oil Supply

1

3095293

Муфта with an external carving

1

11

3627697

Муфта with an external carving

1

6

3922794

The Sealing ring

1

12

3632017

The Flexible hose

1

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

BP6083-05

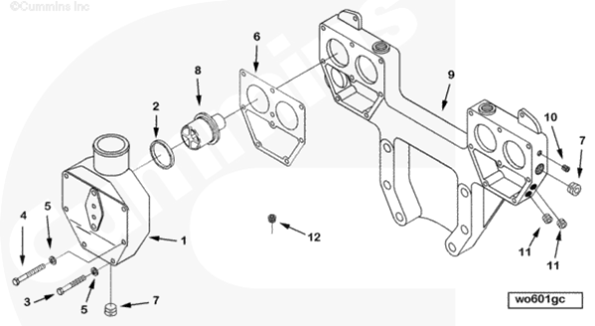

The Water pump

1

3010596

The Bolt with not dropping out washer

4

3/8 - 16 X 1 1/4 Inch.

2

S 604

The Lock washer

2

3/8 Inch.

3

S 907 A

The Trumpet stopper

1

1 1/4 NPT.

4

108330

The Flat washer

4

3/8 Inch.

5

108707

The Bolt with шестигранной a head

2

3/8 - 16 X 1 1/2 Inch.

6

206457

The Sealing ring

1

7

3628606

The Trumpet stopper

1

1/2-14

8

3175857

Support, Water Pump

1

9

S 162 A

The Bolt with шестигранной a head

3

7/16 - 14 X 2 3/4 Inch.

10

S 610

The Lock washer

4

7/16 Inch.

11

103009

The Bolt with шестигранной a head

1

7/16 - 14 X 1 1/4 Inch.

12

206416

Gasket, Support

1

13

S 604

The Lock washer

4

3/8 Inch.

14

S 610

The Lock washer

4

7/16 Inch.

15

103009

The Bolt with шестигранной a head

4

7/16 - 14 X 1 1/4 Inch.

16

199919

The Bolt with a 12-faced head

4

3/8 - 16 X 1 1/2 Inch.

17

206193

Gasket, Water Pump

1

18

206455

Gasket, Water Pump

1

19

3007512

The Sealing ring

1

20

3008494

Adapter, O Ring

1

21

130083

The Persistent bearing

2

22

3050945

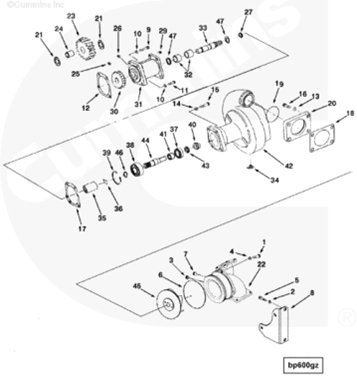

The Entrance water branch pipe

1

23

3628822

The Intermediate gear wheel

1

24

3004686

The Plug

1

3634065

Support, Water Pump

1

Recon equivalent 3634065 NX

25

68193

The Trumpet stopper

1

1/8 NPT.

26

3631805

The Trumpet stopper

1

27

3627723

Retainer, Shaft

1

29

3634019

The Broad stopper

1

30

207251

Gear, Water Pump

1

31

3634066

Support, Water Pump

1

32

3629855

The Plug

2

33

3628639

Shaft, Water Pump

1

35

206195

Шлицевая муфта plugs

1

36

206196

Wire, Snap

1

3634033

The Water pump

1

34

S 962 E

Draincock

1

37

S 16054

The Bearing качения

1

38

S 16069

The Bearing качения

1

39

70183

The Spring ring

1

40

3634146

The Epiploon

1

41

3030487

Spacer, Bearing

1

42

3634035

Body, Water Pump

1

43

3634007

Seal, Water Pump

1

44

3634049

Shaft, Water Pump

1

45

3050454

Impeller, Water Pump

1

46

3175573

The Spring ring

1

47

3026556

The Persistent bearing

2

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

BP6716-03

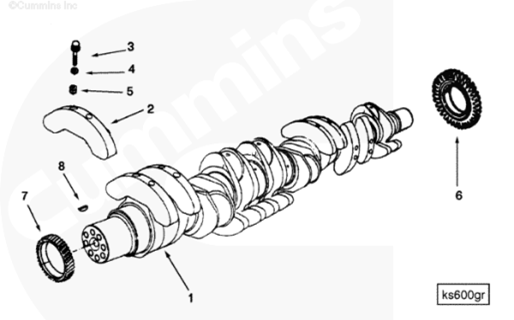

The Cranked shaft

KTA/KTTA50 non-certified

3629276

The Cranked shaft of the engine

1

1

3628873

The Cranked shaft of the engine

1

2

3176216

Weight, Crankshaft Counter

8

3

219153

Bolt, Connecting Rod

16

4

205126

The Flat washer

16

5/8 Inch.

5

3176218

The Round pin

16

6

3175255

The Gear wheel of a cranked shaft

1

7

3628798

The Gear wheel of a cranked shaft

1

8

206904

Key, Woodruff

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

BP6739-07

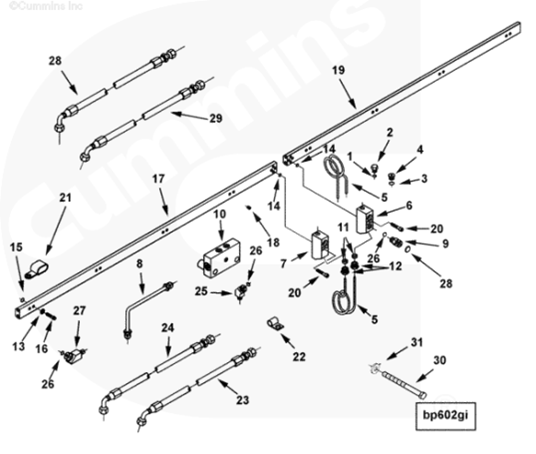

Fuel Manifold

Fuel manifold for:

3023217

The Carving stopper

4

7/16 - 20 UNF.

1

3036666

The Sealing ring

4

2

3630034

The Carving stopper

4

3067424

The Carving stopper

4

1/2 - 20 UNF

3

3037236

The Sealing ring

4

4

3067347

The Carving stopper

4

1/2-20 Thd

5

3176710

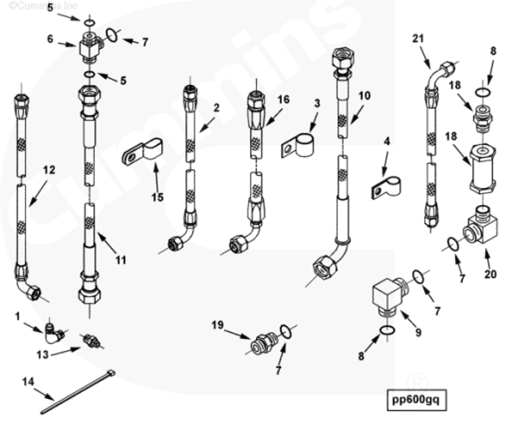

The Pipeline of giving of fuel

2

6

3628517

Connection, Fuel Block

2

7

3628518

Connection, Fuel Block

2

8

3628931

The Pipeline of giving of fuel

4

3630364

Connection, Fuel Block

2

3634685

Муфта with an external carving

2

28

3037537

The Sealing ring

1

9

3634687

Муфта with an external carving

1

26

3922794

The Sealing ring

1

10

3630358

Connection, Fuel Block

2

3633045

Connector, Tube

12

11

3633046

Seal, Ferrule

12

12

3633047

Nut, Tube

12

13

127018

The Flat washer

32

1/4 Inch.

14

131026

The Sealing ring

8

15

3001340

The Sealing ring

32

16

3001811

The Bolt with a 12-faced head

32

1/4 - 20 X 1 Inch.

3633216

The Fuel collector

2

17

3633212

The Fuel collector

2

18

3628610

The Trumpet stopper

8

3633217

The Fuel collector

2

19

3633213

The Fuel collector

2

18

3628610

The Trumpet stopper

8

20

3175074

The Bolt with a face head

8

1/4 - 20 X 1 1/4 Inch.

21

3629516

The Clip

6

22

3627412

The Clip

2

23

3634389

The Flexible hose

2

(Left Bank)

24

3634395

The Flexible hose

2

(Left Bank)

3095292

Elbow, Male Adapter

4

25

3628633

Elbow, Male Adapter

4

26

3922794

The Sealing ring

4

3630764

Tee, Male Union

2

27

3630765

Tee, Plain Adapter

2

26

3922794

The Sealing ring

2

28

3634390

The Flexible hose

1

(Right Bank)

29

3634396

The Flexible hose

1

(Right Bank)

30

S 169 A

The Bolt with шестигранной a head

4

3/8 - 16 X 4 1/2 Inch.

31

108330

The Flat washer

4

3/8 Inch.

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

CI6004-01

The Entrance air line of the compressor

Air compressor air inlet

1

S 134

The Bolt with шестигранной a head

2

5/16 - 18 X 2 Inch.

2

S 684

The Flat washer

2

1/4 Inch.

3

103701

Connection, Compr Air In

1

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

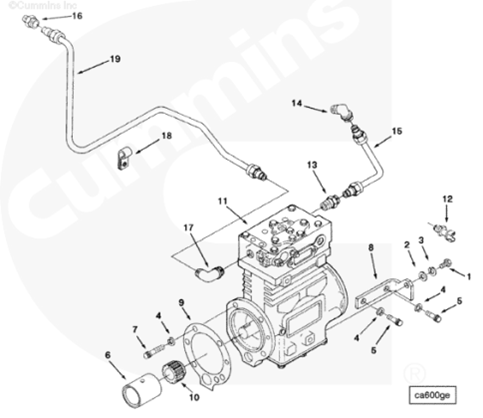

CP6014-03

The Air compressor

Bendix Westinghouse model

1

S 112

The Bolt with шестигранной a head

1

3/8 - 16 X 1 Inch.

2

3628902

The Flat washer

1

3

S 604

The Lock washer

1

3/8 Inch.

4

S 610

The Lock washer

6

7/16 Inch.

5

103023

The Bolt with шестигранной a head

2

7/16 - 14 X 1 Inch.

6

199358

Шлицевая муфта plugs

1

7

206402

The Bolt with a 12-faced head

4

7/16 - 14 X 1 1/2 Inch.

8

3630408

Brace, Air Compressor

1

9

3076226

Gasket, Air Compressor

1

3022314

Compressor, Air

1

10

200398

Hub, Spline Coupling

1

11

3069211

Compressor, Air

1

12

S 962 E

Draincock

1

13

204994

Elbow, Male Adapter

1

14

3176355

Elbow, Male Adapter

1

15

3627548

Tube, Cpr Water Inlet

1

16

S 1002 A

The Union with an external carving

1

17

204995

Elobw, Male Adapter

1

18

3175058

The Clip

1

19

3627546

Tube, Cpr Water Outlet

1

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

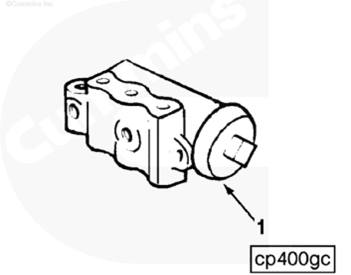

CP8005-03

Air Governor

Bendix Westinghouse air

1

181461

Governor, Air Compressor

1

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

DA6083-02

Гаситель крутильных fluctuations

Single standard viscosity

1

3069776

Adapter, Crankshaft

1

2

3626859

The Pulley of a cranked shaft

1

3

3628649

Гаситель крутильных fluctuations

1

Yellow new improved 12 pad

5

3033629

The Cylindrical pin

1

6

3036846

The Bolt with a 12-faced head

8

3/4 - 16 X 4 1/2 Inch.

7

3069781

Spacer, Crankshaft

1

8

131584

The Cylindrical pin

1

9

3033626

The Flat washer

8

1/2 Inch.

10

3034574

The Bolt with a flange and шестигранной a head

8

9/16 - 18 X 1 7/16 Inch.

11

S 169

The Bolt with шестигранной a head

3

1/2 - 13 X 1 Inch.

12

S 608

The Lock washer

3

1/2 Inch.

13

3036115

Cover, Protective

1

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

EC6070

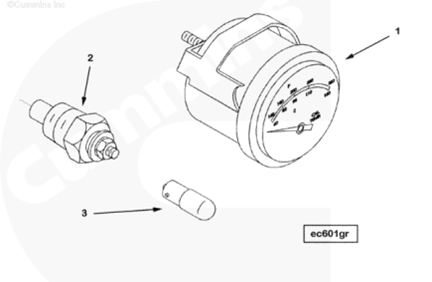

Oil Temperature Gauge

Oil temperature gauge and

1

3015233

Gauge, Temperature

1

2

3015238

Transducer

1

3

3625504

Bulb, Light

1

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

EC6072

Oil Pressure Gauge

Oil pressure guage and

1

3015232

Gauge, Pressure

1

2

3015237

Transducer

1

3

3625504

Bulb, Light

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

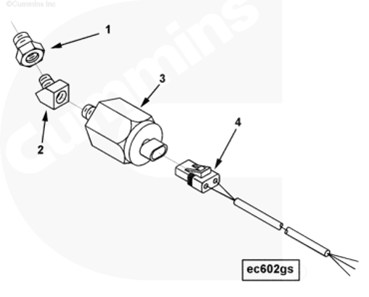

EC8274-01

Low Oil Pressure Switch

Low lube oil pressure switch.

1

S 955

Bushing, Reducing Pipe

1

2

206668

Elbow, Plain Street Pipe

1

3

3056344

The pressure Gauge

1

4

3056356

The Plait of wires

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

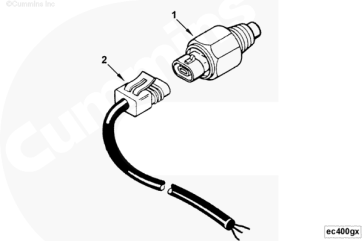

EC8289

Coolant Temperature Switch

High coolant temperature

1

3062866

Switch, Temperature

1

2

3056356

The Plait of wires

1

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

EE6017

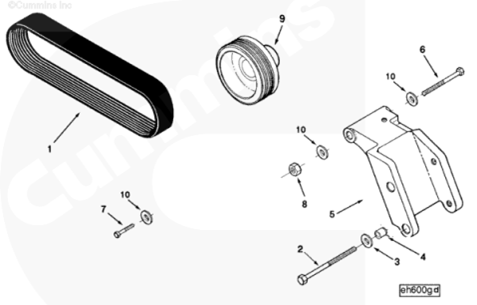

Generator Fastening

Alternator mounting and drive

1

3039376

Клиновой профилированный a belt

1

2

S 167 B

The Bolt with шестигранной a head

2

7/16 - 14 X 5 1/2 Inch.

3

203760

The Flat washer

2

7/16 Inch.

4

207509

The Plug

2

5

3627999

A generator Arm

1

6

158829

The Bolt with шестигранной a head

1

1/2 - 20 X 6 1/2 Inch.

7

S 145

The Bolt with шестигранной a head

1

1/2 - 13 X 1 1/4 Inch.

8

70897

The Counternut

1

1/2 - 20 UNF.

9

3179935

A generator Pulley

1

10

3067344

The Flat washer

3

1/2 Inch.

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

EE6051-02

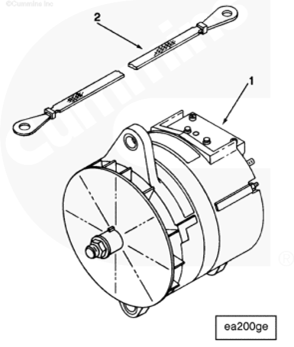

The Generator

The Generator

1

3400698

The Generator

1

2

3202162

A grounding Wire

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

EE6701

Adjusting Link

Alternator adjusting link for

1

3626801

Adjusting draught

1

2

203760

The Flat washer

1

7/16 Inch.

3

206326

The Bolt with a 12-faced head

1

7/16-14 X 1 1/4 Inch.

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

EM6077

The Forward support of the engine

Trunnion type front support

1

AS 4023 SL

The Flexible hose

1

2

S 622

The Flat washer

3

3/8 Inch.

3

S 2268

Fitting, Grease

1

4

68138

The Union with an external carving

1

5

68152 A

The Clip

3

6

3177812

Support, Front Engine

1

7

3629424

Bracket, Connection

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

FA6058-03

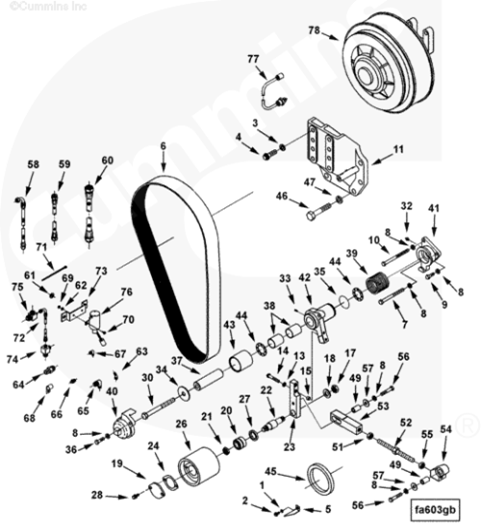

The Design of a drive of the fan

Fan drive arrangement with

1

S 605

The Lock washer

1

5/16 Inch.

2

206527

The Bolt with a 12-faced head

1

5/16 - 18 X 5/8 Inch.

3

S 603

The Lock washer

8

5/8 Inch.

4

153581

The Bolt with a 12-faced head

8

5/8 - 11 X 2 Inch.

5

206526

Pointer, Timing

1

6

3176459

Клиновой профилированный a belt

1

7

S 153

The Bolt with шестигранной a head

1

7/16 - 14 X 5 Inch.

8

S 610

The Lock washer

5

7/16 Inch.

9

103009

The Bolt with шестигранной a head

1

7/16 - 14 X 1 1/4 Inch.

10

3176465

The Bolt with шестигранной a head

2

7/16 - 14 X 5 1/2 Inch.

11

3012281

A fan Support

1

3042770

Fan Idler Assem

1

13

S 604

The Lock washer

2

3/8 Inch.

14

205375

The Bolt with a 12-faced head

2

3/8 - 16 X 2 1/4 Inch.

15

3002993

The Round pin

2

3042750

The Intermediate pulley

1

17

S 249

Standard шестигранная a counternut

1

3/4 - 16 UNF.

18

S 640

The Flat washer

1

3/4 Inch.

19

207603

Cover, Water Conn

1

20

3003354

Bearing, Roller

1

21

3004057

The Counternut

1

3/4 - 16 UNF.

22

3009481

The Intermediate shaft

1

23

3009482

Bracket, Idler Pulley

1

24

3014449

Фланцевая a lining

1

3028408

The Intermediate pulley

1

26

3028409

The Intermediate pulley

1

27

3065830

The Epiploon

1

28

3021470

The Bolt with not dropping out washer

2

5/16 - 18 X 3/4 Inch.

3177130

Lever, Idler

1

30

S 110 B

The Bolt with шестигранной a head

1

5/8 - 18 X 6 1/2 Inch.

32

S 2268

Fitting, Grease

1

33

68171

The Cylindrical pin

2

34

127454

The Flat washer

1

5/8 Inch.

35

145581

The Sealing ring

1

36

185804

The Bolt with шестигранной a head

1

7/16 - 14 X 1 3/8 Inch.

37

3009475

Shaft, Pivot

1

38

3009477

The Plug

2

39

3019416

Spring, Torsion

1

40

3023499

Cap, Idler Lever

1

41

3177125

Support, Pivot Shaft

1

42

3177127

Lever, Idler

1

43

3177128

Sleeve, Wear

1

44

3177129

The Persistent bearing

2

45

3016792

The Epiploon

1

46

S 174

The Bolt with шестигранной a head

6

3/4 - 10 X 4 Inch.

47

S 611

The Lock washer

6

3/4 Inch.

49

3027728

Fastening распорки

2

3031470

Rod, Control

1

51

S 213 A

Standard шестигранная a counternut

1

5/8 - 18 UNF.

52

3030990

Rod, Control

1

53

3030991

End, Control Rod

1

54

3030992

End, Control Rod

1

55

3030993

Standard шестигранная a counternut

1

5/8 - 18 UNF.

56

3035697

The Bolt with шестигранной a head

2

7/16 - 14 X 2 1/4 Inch.

57

3177045

The Flat washer

4

58

AS 4020 SL

The Flexible hose

1

59

AS 8038 SS

The Flexible hose

1

60

AS 10014 SL

The Flexible hose

1

61

S 602

The Flat washer

2

3/8 Inch.

62

S 607

The Lock washer

2

#10.

63

S 1047 A

Elbow, Male Adapter

1

64

43764

The Union with an external carving

1

65

43765

Elbow, Male Adapter

1

66

68138

The Union with an external carving

2

1/8 NPTF x 7/16-20

67

68139

Elbow, Male Adapter

1

1/8 NPTF x 7/16-20 (90)

68

69911 A

The Clip

2

69

103266

Standard шестигранная a nut

2

#10 - 24 UNC.

70

110665

Screw, Pan Head Cap

2

#10 - 24 X 3/8 Inch.

71

3018920

Clamp, Wire Tie

3

72

3175309

The Flexible hose

2

73

3626798

Bracket, Solenoid

1

74

3626872

Tee, Male Adapter

1

75

3626873

Tee, Male Adapter

1

76

3626874

Solenoid

1

77

3626875

The temperature Gauge

1

Coolant.

78

3626879

Clutch, Fan

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

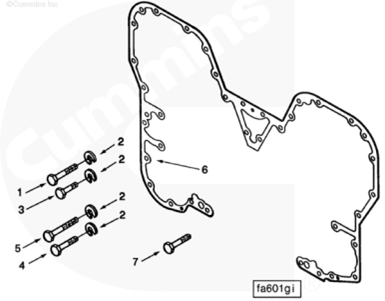

FA6703-01

Gear Cover Mounting

Gear cover mounting for use

1

S 127

The Bolt with шестигранной a head

2

7/16 - 14 X 3 3/4 Inch.

2

S 610

The Lock washer

22

7/16 Inch.

3

102020

The Bolt with шестигранной a head

7

7/16 - 14 X 2 1/4 Inch.

4

108767

The Bolt with шестигранной a head

5

7/16 - 14 X 3 1/2 Inch.

5

110266

The Bolt with шестигранной a head

6

7/16 - 14 X 4 Inch.

6

3177160

Gasket, Gear Cover

1

7

3069026

The Bolt with шестигранной a head

2

7/16 - 14 X 3 1/2 Inch.

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

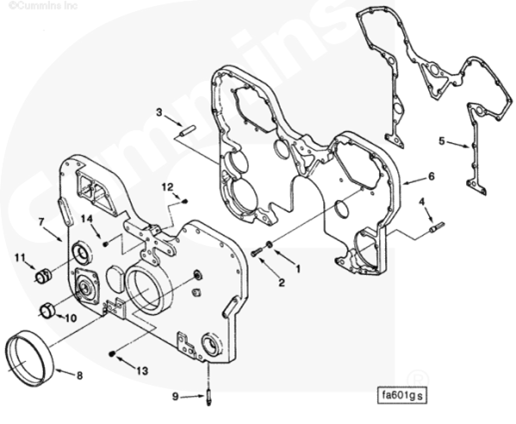

FA6719-01

Gear Cover Mounting

Front gear cover and gear

1

S 610

The Lock washer

15

7/16 Inch.

2

103009

The Bolt with шестигранной a head

8

7/16 - 14 X 1 1/4 Inch.

3

138912

The Adjusting pin

1

4

3176618

Dowel, Diamond

1

5

3178076

Gasket, Gear Housing

1

6

3176918

Carter of distributive gear wheels

1

3069027

Cover, Gear

1

7

3627026

Cover, Gear

1

8

205683

The Plug

1

9

3176649

Seal, Tamper Proof

6

10

3177509

The Plug

1

11

3177510

The Plug

2

12

3628605

The Trumpet stopper

2

1/4-18

13

3628606

The Trumpet stopper

1

1/2-14

14

3628609

The Trumpet stopper

1

3/8-18

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

FF6063-01

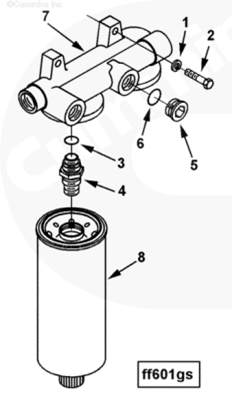

The Fuel filter

Dual element 10 micron fuel

1

S 610

The Lock washer

2

7/16 Inch.

2

106069

The Bolt with шестигранной a head

2

7/16 - 14 X 2 Inch.

3032630

The Head of the fuel filter

1

3

145507

The Sealing ring

2

4

3010635

The Adapter of a head of the filter

2

3201583

The Carving stopper

2

1 5/16 - 12 un.

5

3040911

The Carving stopper

1

6

3201585

The Sealing ring

1

7

3630741

The Head of the fuel filter

1

8

3089916

Separator, Fuel Water

2

Buy from Cummins Filtration

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

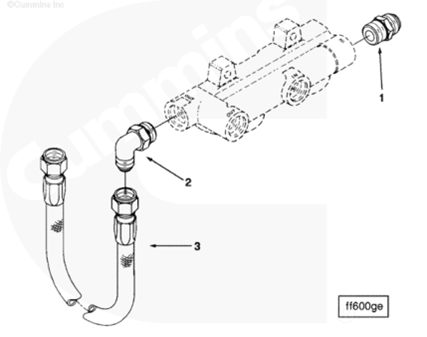

FF6736-02

The Pipeline of the fuel filter

Fuel filter plumbing for dual

1

3032627

Муфта with an external carving

1

3100524

Муфта with an external carving

1

3201585

The Sealing ring

1

2

3032628

The Knee with an external carving

1

3

3634522

The Flexible hose

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

FH6031-03

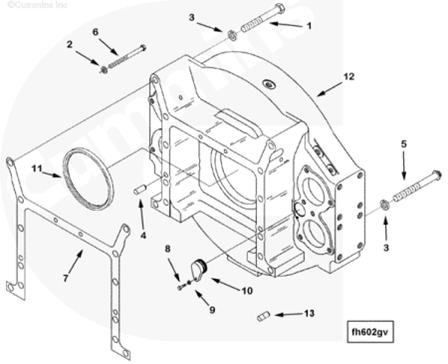

Carter of a flywheel

SAE size 0 flywheel housing

1

S 150 A

The Bolt with шестигранной a head

10

3/4 - 10 X 6 Inch.

2

S 610

The Lock washer

2

7/16 Inch.

3

S 611

The Lock washer

12

3/4 Inch.

4

70662

The Adjusting pin

1

5

205565

The Bolt with a 12-faced head

2

3/4 - 10 X 7 Inch.

6

3176465

The Bolt with шестигранной a head

2

7/16 - 14 X 5 1/2 Inch.

7

3630874

Gasket, Flywheel Housing

1

8

S 167 A

The Bolt with шестигранной a head

2

1/4 - 20 X 7/8 Inch.

9

S 600

The Lock washer

2

1/4 Inch.

10

3010410

Cover, Access Hole

2

11

3630681

The Epiploon

1

12

3628045

Carter of a flywheel

1

13

3634269

Dowel, Diamond

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

FH8711-02

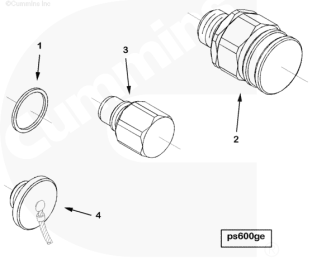

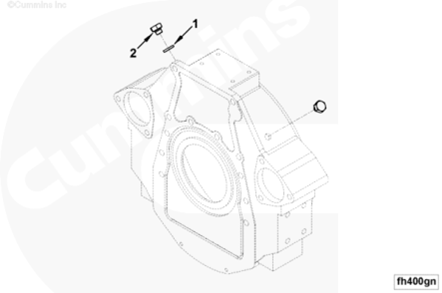

Magnetic Pickup Location P

5/8-18 UNF and 3/4-16 UNF

1

8265

The Flat washer

1

5/8 Inch.

2

163086

The Carving stopper

1

3046202

The Carving stopper

1

3/4 - 16 UNF

3

3040810

The Carving stopper

1

4

3046201

The Sealing ring

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

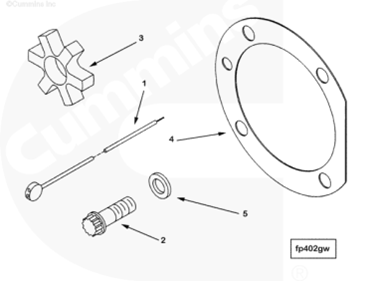

FP6184-01

The Fuel pump

1

3003156

Seal, Wire

2

2

206326

The Bolt with a 12-faced head

4

7/16-14 X 1 1/4 Inch.

3

3046200

Spider, Jaw Coupling

1

4

3069103

Gasket, Fuel Pump

1

5

3175027

The Flat washer

4

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

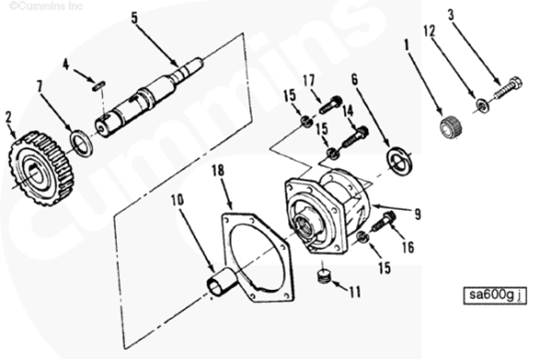

FP6723-01

Fuel Pump Support

Fuel pump support for

applications with compressor.

3010269

Support, Air Compressor

1

Recon equivalent 3010269 NX

1

3000174

Hub, Spline Coupling

1

2

207253

Gear, Accessory Drive

1

3

3045137

The Bolt with шестигранной a head

1

1/2 - 20 X 2 Inch.

4

S 316

Key, Plain Woodruff

1

5

3045229

Shaft, Accessory Drive

1

6

3014103

The Flat washer

1

1 1/32 Inch.

3026556

The Persistent bearing

1

7

3026557

The Persistent bearing

1

9

AR11496

Support, And Bushing

1

3177278

Support, Accessory Drive

1

10

116391

The Plug

1

3176649

Seal, Tamper Proof

1

3177279

Support, Accessory Drive

1

11

3008465

The Trumpet stopper

1

1/8 NPT.

12

3045136

The Flat washer

1

1/2 Inch.

14

S 162 A

The Bolt with шестигранной a head

4

7/16 - 14 X 2 3/4 Inch.

15

S 610

The Lock washer

6

7/16 Inch.

17

103023

The Bolt with шестигранной a head

2

7/16 - 14 X 1 Inch.

18

3046852

Gasket, Acc Drive Support

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

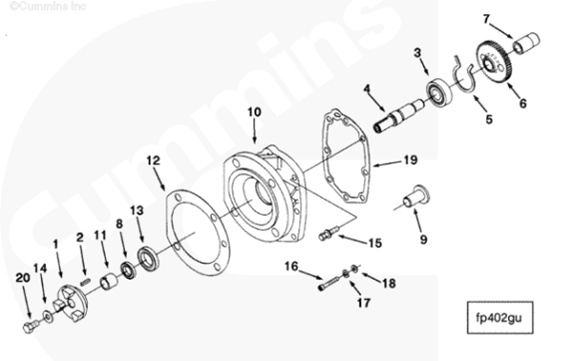

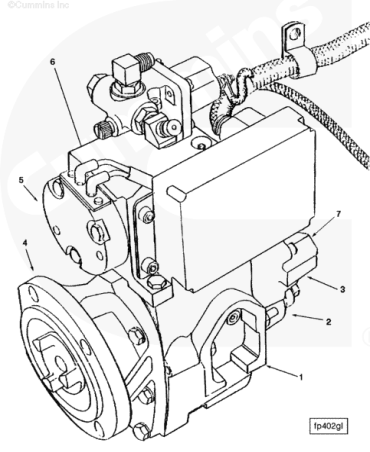

FP6819

The Fuel pump

Fuel pump: PTG/AUTO/pacer

3080521

The Fuel pump

1

Recon equivalent FCBG 51 RX

1

3080504

Housing, Fuel Pump

1

2

3021977

Cover, Spring

1

3

3034245

Pump, Gear Fuel

1

4

3051752

Cover, F P Front

1

5

3074025

Module, EFC

1

6

3077528

Assembly, AFC

1

7

AR12111

Damper, Fuel Pump & Mtg

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

FP6819

Fuel Pump Cover

3051752

Assy, Pump Front Cover

1

1

212613

Hub, Jaw Coupling

1

2

212668

Key, Square

1

3028372

Assy, Main Drive

1

3

S 16052

The Bearing качения

1

4

212601

Shaft, Fuel Pump

1

5

212604

The Spring ring

1

6

212605

Шестеренный the fuel pump

1

7

212639

Adapter, Spline

1

8

3062676

The Epiploon

2

9

163944

The Plug

1

10

3075526

Cover, Fuel Pump

1

11

3052860

Spacer

1

12

3069103

Gasket, Fuel Pump

1

3803615

Kit, Seal

1

13

3075523

The Epiploon

1

14

146160

The Flat washer

1

5/16 Inch.

15

3017051

The Bolt with not dropping out washer

8

1/4 - 20 X 1 1/8 Inch.

16

118226

The Bolt with a face head

1

#10 - 24 X 1 1/4 Inch.

17

S 607

The Lock washer

1

#10.

18

103089

The Flat washer

1

1/8 Inch.

19

3073766

Gasket, Fuel Pump

20

S 110

The Bolt with шестигранной a head

1

5/16 - 18 X 5/8 Inch.

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

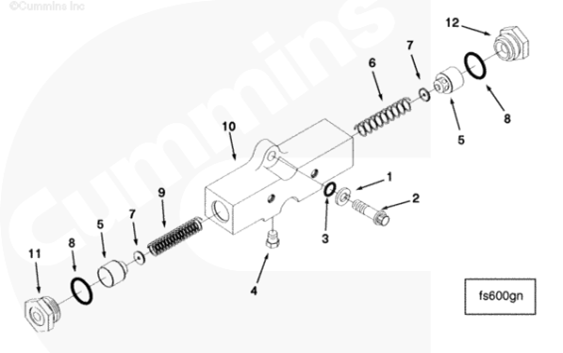

FS6013-02

The Fuel block

Standard fuel block with

integral check valves.

1

S 604

The Lock washer

2

3/8 Inch.

2

191772

The Bolt with a 12-faced head

2

3/8 - 16 X 1 1/4 Inch.

3

3818885

The Sealing ring

2

3629408

Connection, Fuel Block

1

4

3631805

The Trumpet stopper

2

5

650826

Plunger, Fuel Control

2

6

650829

The Press spring

1

7

651045

The Condensing washer

2

15/32 Inch.

8

3046943

The Sealing ring

2

9

3277045

The Press spring

1

10

3629409

Connection, Fuel Block

1

11

3629410

Retainer, Spring

1

12

3629411

Seat, Prs Regulator Valve

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

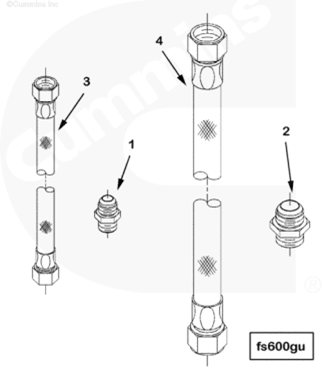

FS6019-01

Auxiliary Fuel Hoses

Auxiliary fuel hoses (supply

1

3627802

Муфта with an external carving

1

2

3627803

Муфта with an external carving

1

3

3628160

The Flexible hose

1

4

3628524

The Flexible hose

1

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

FT60104-04

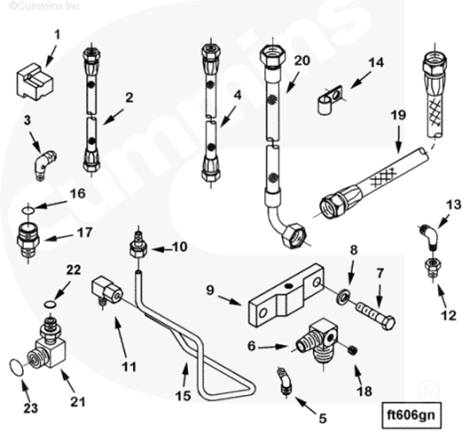

Топливопровод

Fuel tubing for centry and

1

3627786

Connection, Adapter

1

2

AK 4009 SS

The Flexible hose

1

3

68139

Elbow, Male Adapter

1

1/8 NPTF x 7/16-20 (90)

4

AK 4044 SS

The Flexible hose

1

5

S 1047 A

Elbow, Male Adapter

2

6

3175716

Elbow, Male Adapter

1

7

S 120

The Bolt with шестигранной a head

2

3/8 - 16 X 1 3/4 Inch.

8

S 604

The Lock washer

2

3/8 Inch.

9

3175797

Connection, Fuel Block

1

10

3252438

Connector, Tube

1

11

3252444

Elbow, Tube Connector

1

12

S 955

Bushing, Reducing Pipe

1

13

112105

Elbow, Male Adapter

1

14

108722

The Clip

2

15

3626948

Tube, Air

1

3628522

Муфта with an external carving

1

16

3627695

The Sealing ring

1

17

3627698

Муфта with an external carving

1

18

3628604

The Trumpet stopper

1

1/8 NPT

19

3634503

The Flexible hose

1

20

3634508

The Flexible hose

1

3631690

The Knee with an external carving

1

21

3631691

The Knee with an external carving

1

3037236

The Sealing ring

1

3627695

The Sealing ring

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

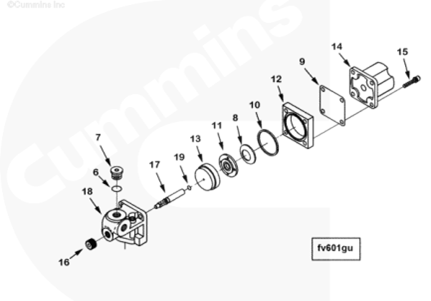

the Fuel valve - the solenoid

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

FV6020-02

The Fuel valve

Fuel shutoff valve

3096857

Valve, Shutoff

1

3067424

The Carving stopper

1

1/2 - 20 UNF.

6

3037236

The Sealing ring

1

7

3067347

The Carving stopper

1

1/2-20 Thd

3096856

Valve, Fuel Shutoff

1

8

129768

A valve Spring

1

9

129839

Shield, Shutoff Valve

1

10

129888

The Sealing ring of rectangular section

2

11

196057

Disc, Valve

1

12

3034451

The drive Case

1

13

3034452

Disc, Actuator

1

14

3054609

Solenoid

1

15

3065944

The Bolt with not dropping out washer

4

#10 - 24 X 1 Inch.

3073890

Body, Fuel Shutoff Valve

1

16

129838

Knob

1

17

3013036

Shaft, Shutoff Valve

1

18

3073891

Body, Shutoff Valve

1

19

3279794

The Sealing ring

1

4024809

Kit, Fuel Solenoid

1

129888

The Sealing ring of rectangular section

1

3054609

Solenoid

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

FV6705-01

The Fuel valve

Fuel shutoff valve

1

S 189 C

The Bolt with a face head

2

1/4 - 20 X 1 3/4 Inch.

2

67684

The Flat washer

2

1/4 Inch.

3

154087

The Sealing ring of rectangular section

1

4

181466

The Lock washer

2

1/4 Inch.

3098594

The Fuel filter

1

5

70700

The Press spring

1

6

3014575

Cap, Fuel Pump Filter

1

7

3021123

The Sealing ring

1

8

3090769

The Mesh filter

1

9

3098593

Housing, Filter

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

FW6010-02

Flexplate

Flexplate drive assembly for

1

131584

The Cylindrical pin

1

2

205059

The Flat washer

12

3/4 Inch.

3

3023536

The Bolt with шестигранной a head

12

3/4 - 16 X 3 3/4 Inch.

4

3629373

Flexplate

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

HD6011-01

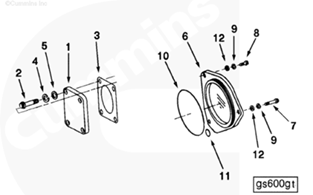

Front Hydraulic Pump

Required when fuel

1

206406

Flange

1

2

S 145

The Bolt with шестигранной a head

4

1/2 - 13 X 1 1/4 Inch.

3

206407

Gasket, Hand Hole

1

4

111445

Lockwasher

4

5

127571

The Flat washer

4

1/2 Inch.

6

206158

Cover, Hyd Pump Flange

1

7

S 162 A

The Bolt with шестигранной a head

2

7/16 - 14 X 2 3/4 Inch.

8

103023

The Bolt with шестигранной a head

1

7/16 - 14 X 1 Inch.

9

135783

The Lock washer

3

7/16 Inch.

10

145600

The Sealing ring

1

11

3818885

The Sealing ring

1

12

3175027

The Flat washer

3

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

IM6019-03

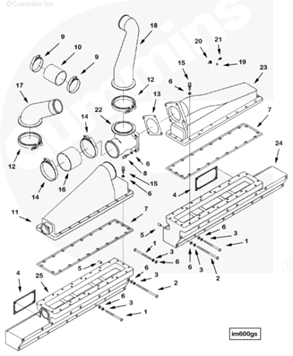

Air Intake Manifold And Co

Air intake manifolds for use

1

S 130 A

The Bolt with шестигранной a head

32

3/8 - 16 X 5 1/4 Inch.

2

S 141 C

The Bolt with шестигранной a head

32

3/8 - 16 X 6 3/4 Inch.

3

S 604

The Lock washer

64

3/8 Inch.

4

206277

The Lining of an inlet collector

16

5

3014304

The Sealing ring of rectangular section

32

6

3628902

The Flat washer

64

7

3026423

Gasket, Aftercooler Cover

4

8

3065723

The Bolt with not dropping out washer

8

3/8 - 16 X 1 3/4 Inch.

9

3633974

Clamp, T Bolt

4

3 Inch

10

3628635

The Flat hose

2

11

3053201

Cover, Aftercooler

2

12

186917

The Tape collar

2

13

3047665

Connection with a lining

2

14

3633975

Clamp, T Bolt

4

4 3/4 Inch

15

3065723

The Bolt with not dropping out washer

84

3/8 - 16 X 1 3/4 Inch.

16

3067371

The Flat hose

2

17

3177661

Connection, Air Crossover

1

18

3177662

Connection, Air Crossover

1

3630017

Connection, Air Crossover

2

3037536

The Carving stopper

2

9/16 - 18 UNF

19

3037537

The Sealing ring

2

20

3040813

The Carving stopper

2

9/16 - 18 UNF

21

67184 B

Футорка with a carving

2

22

3629545

Connection, Air Crossover

2

23

3626999

Cover, Aftercooler

2

3630507

The Branch pipe of an inlet collector

2

24

3630243

The Branch pipe of an inlet collector

2

3037536

The Carving stopper

4

9/16 - 18 UNF

19

3037537

The Sealing ring

4

20

3040813

The Carving stopper

4

9/16 - 18 UNF

3630508

The Branch pipe of an inlet collector

2

25

3630244

The Branch pipe of an inlet collector

2

3037536

The Carving stopper

4

9/16 - 18 UNF

19

3037537

The Sealing ring

4

20

3040813

The Carving stopper

4

9/16 - 18 UNF

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

IM6719-01

Fastening of an inlet collector

Mounting hardware for remote

1

S 170 A

The Bolt with шестигранной a head

2

3/8 - 16 X 6 Inch.

2

S 604

The Lock washer

2

3/8 Inch.

3

3628902

The Flat washer

2

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

LF6026-02

The Oil filter

Five element lube oil filter

1

127362

The Flat washer

12

3/8 Inch.

2

191772

The Bolt with a 12-faced head

12

3/8 - 16 X 1 1/4 Inch.

3

3629387

The Lining of a head of the filter

1

4

3177108

The Lining of a head of the filter

1

5

205659

The Press spring

2

6

3021618

Plunger, Prs Regulator

1

7

3028552

Body, Bypass Valve

1

8

S 103 D

The Bolt with шестигранной a head

6

3/8 - 16 X 1 1/4 Inch.

9

S 604

The Lock washer

6

3/8 Inch.

10

S 910 B

The Trumpet stopper

1

1/4 NPT.

11

3628604

The Trumpet stopper

1

1/8 NPT

12

3628605

The Trumpet stopper

8

1/4-18

13

3629141

The Lining of a cover of the oil filter

1

14

3177433

The Protective cover

1

15

3629541

Head, Lub Oil Filter

1

16

3627309

The Adapter of a head of the filter

5

17

3627927

Plunger, Prs Regulator

1

3040818

The Carving stopper

1

1 3/16 - 12 un.

18

3040819

The Carving stopper

1

19

3035228

The Sealing ring

1

20

3310169

The Element of the oil filter

5

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

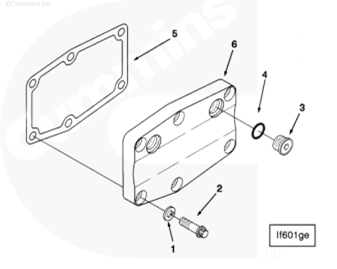

LF6704-02

The Branch pipe of swapping of oil

Oil transfer connection for

use with factory mounted lube

oil by-pass filter.

1

S 604

The Lock washer

12

3/8 Inch.

2

191772

The Bolt with a 12-faced head

12

3/8 - 16 X 1 1/4 Inch.

3046202

The Carving stopper

4

3/4 - 16 UNF

3

3040810

The Carving stopper

1

4

3046201

The Sealing ring

1

5

3627938

A cover Lining

2

6

3629146

The Branch pipe of swapping of oil

2

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

LG6003-01

Масломерный щуп

Масломерный щуп:

1

131026

The Sealing ring

1

2

3030207

The Clamp масломерного щупа

1

3

3201793

Масломерный щуп

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

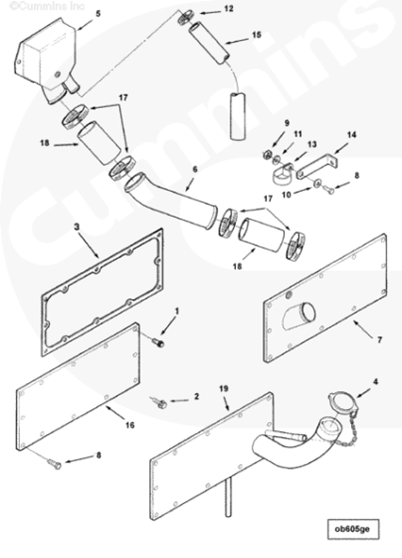

OB6092-02

Filler And Breather Dipsti

Oil gauge tube, dipstick, oil

1

3064321

The Bolt with not dropping out washer

8

3/8 - 16 X 7/8 Inch.

2

3014766

The Bolt with not dropping out washer

84

3/8 - 16 X 1 3/64 Inch.

3

3175856

Gasket, Hand Hole

8

4

3629112

The Cover of a jellied mouth

1

5

3176607

Сапун картера the engine

2

6

3177039

The Tube сапуна

2

7

3178812

Cover, Hand Hole

2

8

S 109

The Bolt with шестигранной a head

3

3/8 - 16 X 7/8 Inch.

9

3201128

Standard шестигранная a nut

2

3/8 - 16 UNC.

10

3628902

The Flat washer

2

11

S 604

The Lock washer

2

3/8 Inch.

12

43828 A

A hose Collar

2

11 16 - 1 1/2 Inch.

13

68189

The Clip

2

14

114307

A tube Arm

2

15

3031367

The Flat hose

2

16

3628229

Cover, Hand Hole

5

17

43828 C

A hose Collar

8

1 9/16 - 2 1/2 Inch.

18

3177530

The Flat hose

4

19

3178785

Cover, Hand Hole

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

OB6701-01

Заглушки apertures under installation of viewing glass

Plugs for the sight glass

1

3000204

Washer, Copper

4

2

S 181 C

The Bolt with шестигранной a head

4

1/2 - 20 X 3/4 Inch.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

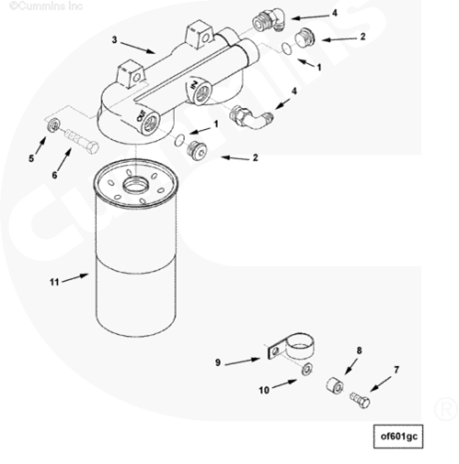

OF6005-04

Перепускной the oil filter

Dual element by-pass lube oil

1

43696 A

The Sealing ring

2

2

139473

The Stopper with a sealing ring

2

7/8 - 14 UNF.

3

3033405

Head, Lub Oil Filter

1

4

3177198

The Knee with an external carving

2

5

S 610

The Lock washer

2

7/16 Inch.

6

106069

The Bolt with шестигранной a head

2

7/16 - 14 X 2 Inch.

7

3065723

The Bolt with not dropping out washer

1

3/8 - 16 X 1 3/4 Inch.

8

3200162

Spacer

1

9

3627412

The Clip

1

10

3628902

The Flat washer

1

11

3889311

Element, Oil Bypass Filter

2

No service kit.

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

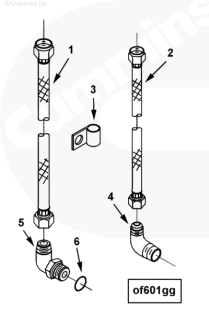

OF6739-02

Bypass Oil Filter Hoses R

By-pass filter hose for use

KT/KTA/KTTA50.

1

3634304

The Flexible hose

1

2

3634308

The Flexible hose

1

3

3627412

The Clip

3

4

3629496

Elbow, Male Adapter

1

3063674

The Knee with an external carving

1

5

3063674

The Knee with an external carving

1

6

3046201

The Sealing ring

1

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

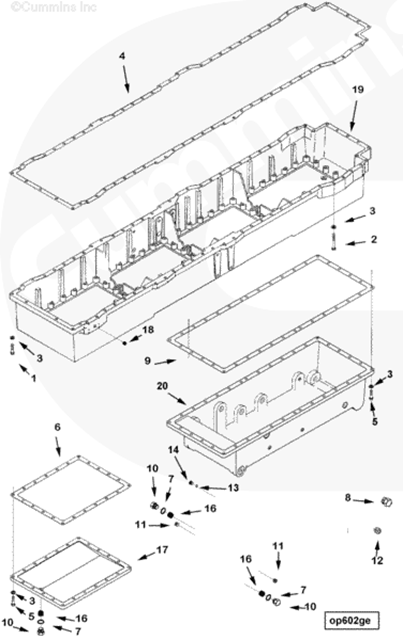

OP6029-03

The Pallet картера

Oil pan adapter with two

For use with KTA50.

1

106069

The Bolt with шестигранной a head

46

7/16 - 14 X 2 Inch.

2

108767

The Bolt with шестигранной a head

28

7/16 - 14 X 3 1/2 Inch.

3

3000082

The Flat washer

74

15/32 Inch.

4

3043213

Gasket, Oil Pan

1

5

S 140

The Bolt with шестигранной a head

80

7/16 - 14 X 1 3/4 Inch.

6

3043211

Gasket, Oil Pan

2

7

67946

The Flat washer

2

1 1/32 Inch.

8

3032629

The Carving stopper

2

1 5/16 - 12 UNF.

9

3043214

Gasket, Oil Pan

1

10

3055069

The Carving stopper

3

1 - 18 UNS.

11

3628606

The Trumpet stopper

3

1/2-14

12

3628608

The Trumpet stopper

3

3037536

The Carving stopper

2

9/16 - 18 UNF

13

3037537

The Sealing ring

2

14

3040813

The Carving stopper

2

3028696

Cover, Oil Pan

1

16

200845

Футорка with a carving

2

17

3028696

Cover, Oil Pan

2

18

3628609

The Trumpet stopper

1

3/8-18

19

3629539

Adapter, Oil Pan

1

20

3088853

The Pallet картера the engine

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

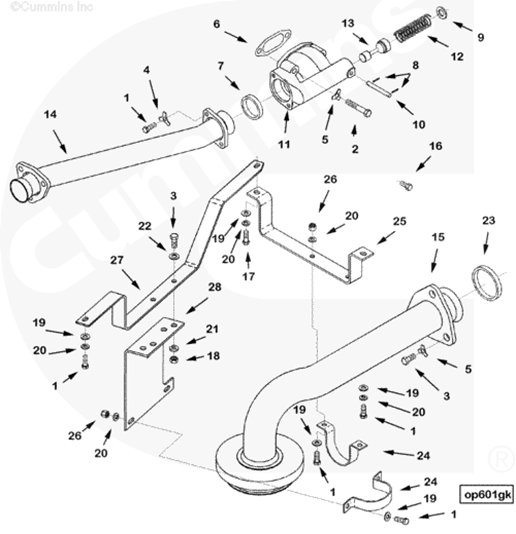

OP6713-02

Lube Oil PP Tubing

Lube oil pump tubing required

1

S 112

The Bolt with шестигранной a head

12

3/8 - 16 X 1 Inch.

2

S 121 B

The Bolt with шестигранной a head

2

7/16 - 14 X 2 1/2 Inch.

3

103023

The Bolt with шестигранной a head

5

7/16 - 14 X 1 Inch.

4

109319

The Lock plate

2

5

151355

The Lock plate

8

6

3000632

Connection with a lining

1

7

3026392

The Sealing ring of rectangular section

2

3031385

Редукционный the valve

1

8

107695

The Cylindrical pin

2

9

127316

The Flat washer

1

5/8 Inch.

10

3001719

Pin, Straight

1

11

3026925

The Branch pipe of swapping of oil

1

12

3026926

The Press spring

1

13

3026927

Plunger, Prs Regulator

1

14

3035001

Tube, Lub Oil Transfer

1

15

3177511

Tube, Lub Oil Suction

1

16

S 109

The Bolt with шестигранной a head

4

3/8 - 16 X 7/8 Inch.

17

S 172 B

The Bolt with шестигранной a head

1

3/8 - 16 X 1 1/8 Inch.

18

S 217

Strong шестигранная a nut

2

7/16 - 14 UNC.

19

S 602

The Flat washer

10

3/8 Inch.

20

S 604

The Lock washer

4

3/8 Inch.

21

S 610

The Lock washer

2

7/16 Inch.

22

S 622

The Flat washer

2

3/8 Inch.

23

3031544

The Sealing ring of rectangular section

1

24

3031989

The Trumpet collar

2

25

3031998

Bracket, Oil Tube

1

26

3201128

Standard шестигранная a nut

6

3/8 - 16 UNC.

27

3177513

Bracket, Oil Tube

1

28

3628402

Bracket, Oil Tube

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

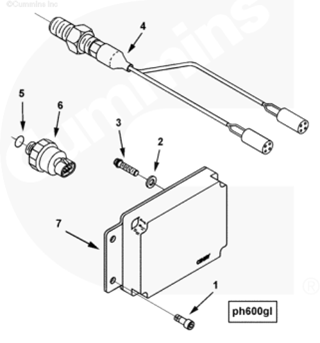

PH6002-03

The engine management Module

Engine control module

1

69771

The Bolt with a face head

2

1/4 - 20 X 5/8 Inch.

2

127018

The Flat washer

1

1/4 Inch.

3

3001811

The Bolt with a 12-faced head

1

1/4 - 20 X 1 Inch.

4

3079604

Sensor, Speed

1

Flywheel.

3080416

The pressure Gauge

1

fuel.

5

3037537

The Sealing ring

1

6

3083727

The pressure Gauge

1

Fuel.

7

3654718

The Electronic module of management

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

a cooler of inlet air

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

PP2315

The cooler Heat exchanger наддувочного air

1

3626715

Core, Aftercooler

4

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

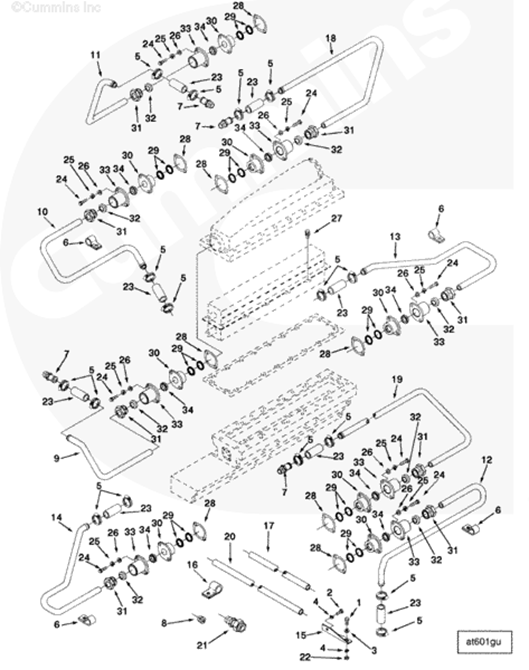

PP2315-02

The cooler Pipeline наддувочного air

1

S 109

The Bolt with шестигранной a head

4

3/8 - 16 X 7/8 Inch.

2

S 117

The Bolt with шестигранной a head

4

3/8 - 16 X 3/4 Inch.

3

S 602

The Flat washer

4

3/8 Inch.

4

S 604

The Lock washer

8

3/8 Inch.

5

3254316

A hose Collar

16

9/16 - 1 3/8 Inch.

6

107460

The Clip

7

7

215921

The Flat hose муфты

2

8

3008469

The Trumpet stopper

2

3/4 NPT.

9

3177314

Tube, Water Transfer

1

10

3177315

Tube, Water Transfer

1

11

3177316

Tube, Water Transfer

1

12

3177731

Tube, Water Transfer

1

13

3177732

Tube, Water Transfer

1

14

3178044

Tube, Water Transfer

1

15

3178462

Bracket, Water Tube

4

16

3178499

The Clip

1

17

3178545

Tube, Water Transfer

1

18

3178548

Tube, Water Transfer

1

19

3178549

Tube, Water Transfer

1

20

3178550

Tube, Water Transfer

1

21

3179822

Connector, Tube

2

22

3201128

Standard шестигранная a nut

4

3/8 - 16 UNC.

23

3818267

The Flat hose

8

24

S 119

The Bolt with шестигранной a head

16

5/16 - 18 X 1 1/4 Inch.

25

S 605

The Lock washer

16

5/16 Inch.

26

S 626

The Flat washer

16

5/16 Inch.

27

3014766

The Bolt with not dropping out washer

32

3/8 - 16 X 1 3/64 Inch.

28

3026426

Фланцевая a lining

8

29

3033915

The Sealing ring

16

30

3177300

Connection, Adapter

8

31

3633179

Nut, Tube

8

32

3348860

Seal, Ferrule

8

33

3178290

The Pumping over water branch pipe

8

34

3627449

The Sealing ring of rectangular section

8

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

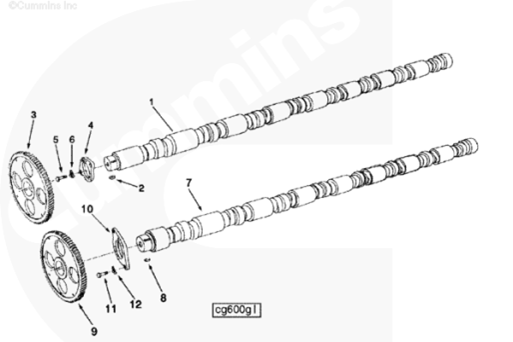

Drawing of a camshaft and a gear wheel

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

PP2315

The Camshaft and a gear wheel

$CAMSHAFT And GEAR RB

1

3066899

The Camshaft

1

2

S 302

Key, Plain Woodruff

3

206747

A camshaft Gear wheel

1

4

3007971

Bearing, Camshaft Thrust

1

5

S 112

The Bolt with шестигранной a head

2

3/8 - 16 X 1 Inch.

6

68908

The Lock plate

2

$CAMSHAFT And GEAR LB

7

3066898

The Camshaft

1

8

S 302

Key, Offset Woodruff

9

4953321

A camshaft Gear wheel

1

10

3007971

Bearing, Camshaft Thrust

1

11

S 112

The Bolt with шестигранной a head

2

3/8 - 16 X 1 Inch.

12

68908

The Lock plate

2

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

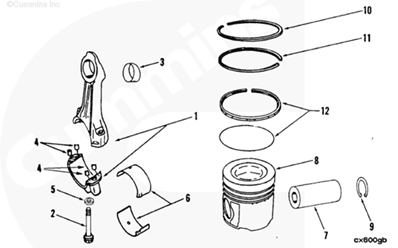

PP2315-05

Pistons and rods

Performance parts for KTA50-C

1

3632225

An engine Rod

16

Recon equivalent 3632225 RX

3632169

An engine Rod

1

2

3013266

The Bolt of a cover of rods

2

3

3043909

The Plug

1

4

69558

The Adjusting pin

4

5

205126

The Flat washer

2

5/8 Inch.

6

3047390

Шатунный the bearing

2

Standard

6

3047391

Шатунный the bearing

A/R

.010 Inch Undersize

6

3047392

Шатунный the bearing

A/R

.020 Inch Undersize

6

3047393

Шатунный the bearing

A/R

.030 Inch Undersize

6

3047394

Шатунный the bearing

A/R

.040 Inch Undersize

3631246

Kit, Piston Engine

16

7

205200

The Piston finger

1

8

3096680

The engine Piston

1

9

205269

The Spring ring

2

3804571

The Adjusting piston ring

16

10

3070589

Компрессионное a piston ring

1

11

3090460

Компрессионное a piston ring

1

12

3090450

Маслосъемное a piston ring

1

Serviced as mult kits.

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

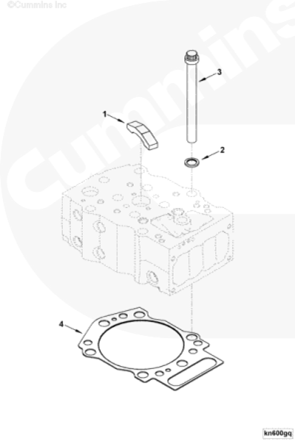

a block Head cummins

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

PP2315

The Head of the block of cylinders

1

3086362

The Valve with крейцкопфом

36

2

205059

The Flat washer

96

3/4 Inch.

3

3032633

The Bolt with a 12-faced head

96

3/4 - 16 X 8 Inch.

4

3166289

The Lining of a head of the block of cylinders

16

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

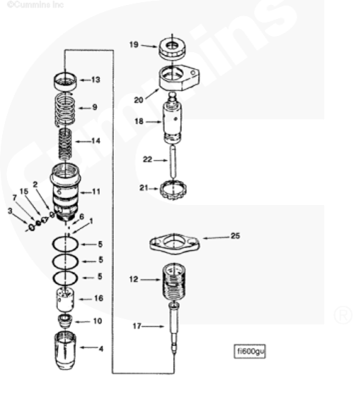

PP2315-02

The Atomizer

3076132

The Atomizer

16

1

167157

Ball, Check

1

2

173086

An atomizer Lining

1

3

174299

Retainer, Screen

1

4

3042430

Retainer, Injector Cup

1

5

193736

The Sealing ring

3

6

203426

The Cylindrical pin

2

7

3008706

The Mesh filter

1

9

3042428

Spring, Injector

1

10

3042713

Cup, Injector

1

11

3042425

Adapter, Injector

1

12

3279821

Screw, Injector Stop

1

13

3052218

Retainer, Injector Spring

1

14

3042427

Spring, Injector

1

15

3045047

Plug, Injector Orifice

1

3076125

Barrel & Plunger

1

16

3053502

Barrel, Injector

1

17

3076124

Plunger, Injector

1

18

3075381

Tappet, Hyd Var Timing

1

Recon equivalent 3075381 RX

19

3068859

Cap, Tappet Top Stop

1

20

3279850

Nut, Tappet Top Stop Lock

1

21

3068860

The Counternut

1

1 5/16 - 18 UNF.

22

3279819

Link, Injector Plunger

1

25

3411695

An atomizer Clip

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

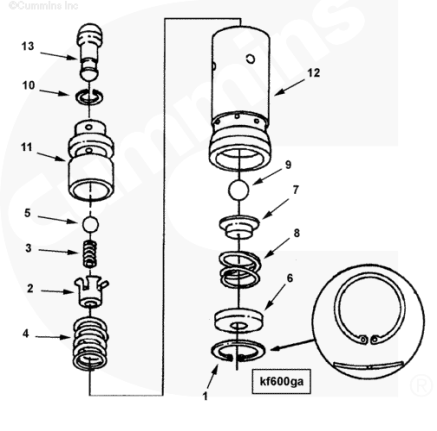

PP2315-01

Tappet

3075381

Tappet, Hyd Var Timing

16

Recon equivalent 3075381 RX

1

3027988

The Spring ring

1

2

3076033

Guide, Ball

1

3

3027994

The Press spring

1

4

3054852

The Press spring

1

5

3027996

Ball, Check

1

6

3085345

Socket, Tappet

1

7

3085344

Guide, Ball

1

8

4077027

Spring, Injector

1

9

3062119

Ball, Check

1

10

3052231

Retainer, Injector Link

1

11

3053772

Plunger, Tappet

1

12

3075386

Sleeve, Tappet

1

13

3052233

Link, Injector Plunger

1

3804700

Kit, STC Tappet Repair

1

1

3027988

The Spring ring

1

2

3076033

Guide, Ball

1

3

3027994

The Press spring

1

4

3054852

The Press spring

1

5

3027996

Ball, Check

1

6

3085345

Socket, Tappet

1

7

3085344

Guide, Ball

1

8

4077027

Spring, Injector

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

PP2315

LB Oil Control Connection

3631375

Conn, LB Oil Control

1

1

3037662

The Knee with an external carving

3

2

3175318

The Flexible hose

1

3

69465

The Clip

2

4

69911 A

The Clip

2

3630734

Tee, Male Union

1

5

3627695

The Sealing ring

2

6

3630735

Tee, Male Union

1

7

3630740

The Sealing ring

1

3630736

The Knee with an external carving

1

8

3046201

The Sealing ring

1

9

3630737

The Knee with an external carving

1

7

3630740

The Sealing ring

1

10

3630865

The Flexible hose

1

11

3632028

The Flexible hose

2

12

AS 4046 SL

The Flexible hose

1

13

68138

The Union with an external carving

2

14

3018920

Clamp, Wire Tie

2

15

3178520

The Clip

2

16

3628889

The Flexible hose

1

17

178079

The Return valve

1

3095291

The Union with an external carving

1

8

3046201

The Sealing ring

1

18

3063019

The Union with an external carving

1

3630732

Муфта with an external carving

1

19

3630733

Муфта with an external carving

1

7

3630740

The Sealing ring

1

3630806

The Knee with an external carving

1

7

3630740

The Sealing ring

1

20

3630828

Elbow, Male Adapter

21

3630867

The Flexible hose

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

PP2315

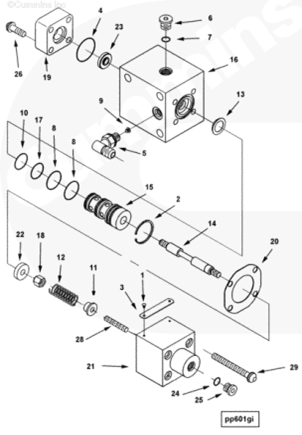

Маслораспределительный the valve

3060609

Valve, Oil Control

2

1

S 2286

The Fixing screw

2

2

S 16240

The Spring ring

1

3

105375

The Passport tablet

1

4

3034408

The Sealing ring

1

5

3038743

The Return valve

1

3040814

The Carving stopper

1

7/16 - 20 UNF

6

3036665

The Carving stopper

1

7

3036666

The Sealing ring

1

8

3042542

The Sealing ring

2

9

3044993

Plug, Injector Orifice

1

10

3045986

The Sealing ring

1

11

3049041

Retainer, Spring

1

12

3051069

The Press spring

1

13

3054411

Spring, Leaf

1

3060605

Barrel & Plunger

1

14

3053667

Plunger, Oil Control Valve

1

15

3060604

Barrel, Oil Control Valve

1

16

3060606

Body, Oil Control Valve

1

17

3066914

The Sealing ring

1

18

3069015

The Counternut

1

1/4 - 28 UNF.

19

3069989

Cover, Oil Control Valve

1

20

3070108

Gasket, Control Valve Body

1

21

4009927

Cover, Diaphragm

1

22

3070186

The Flat washer

1

1/4 Inch.

23

3073998

Disc, Valve

1

3417076

The Carving stopper

1

24

3034412

The Sealing ring

1

25

3417103

The Carving stopper

1

26

3417077

The Bolt with a face head

4

28

3417096

Screw, Socket Set

1

29

3417098

The Bolt with a face head

4

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

PP2315-04

Oil Control Valve Mounting

1

S 604

The Lock washer

4

3/8 Inch.

2

S 605

The Lock washer

6

5/16 Inch.

3

S 626

The Flat washer

6

5/16 Inch.

4

63842

The Flat washer

4

3/8 Inch.

5

S 137

The Bolt with шестигранной a head

4

3/8 - 16 X 2 Inch.

6

S 164

The Bolt with шестигранной a head

6

5/16 - 24 X 3 Inch.

7

3634172

Bracket, Valve

2

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

PP2315

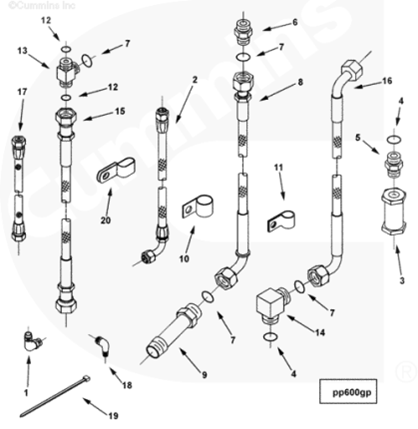

RB Oil Control Connection

3631379

Conn, RB Oil Control

1

1

3037662

The Knee with an external carving

3

2

3175318

The Flexible hose

1

3

178079

The Return valve

1

3095291

The Union with an external carving

1

4

3046201

The Sealing ring

1

5

3063019

The Union with an external carving

1

3630730

Муфта with an external carving

1

6

3630731

Муфта with an external carving

1

7

3630740

The Sealing ring

1

8

3630864

The Flexible hose

1

3630877

Муфта with an external carving

1

7

3630740

The Sealing ring

1

9

3630878

Муфта with an external carving

1

10

69465

The Clip

2

11

69911 A

The Clip

2

3630734

Tee, Male Union

1

12

3627695

The Sealing ring

2

13

3630735

Tee, Male Union

1

7

3630740

The Sealing ring

1

3630736

The Knee with an external carving

1

4

3046201

The Sealing ring

1

14

3630737

The Knee with an external carving

1

7

3630740

The Sealing ring

1

15

3630866

The Flexible hose

2

16

3631295

The Flexible hose

1

17

AK 4040 SS

The Flexible hose

2

18

68139

Elbow, Male Adapter

1

19

3018920

Clamp, Wire Tie

1

20

3178520

The Clip

3

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

PP2315-03

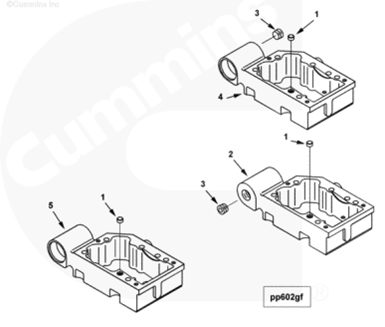

Rocker Lever Housing

1

205129

The Round pin

16

2

3629538

Housing, Rocker Lever

1

3

3628607

The Trumpet stopper

2

3/4-14

4

3202199

Housing, Rocker Lever

1

5

3177713

Housing, Rocker Lever

14

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

PP2315-02

STC Oil Manifold

1

3023217

The Carving stopper

8

7/16 - 20 UNF.

2

3084623

Manifold, Oil

2

3

127018

The Flat washer

16

1/4 Inch.

4

3084539

The Sealing ring

16

5

3001811

The Bolt with a 12-faced head

16

1/4 - 20 X 1 Inch.

6

3084624

Manifold, Oil

2

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

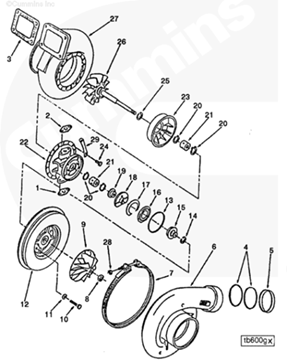

Drawing турбокомпрессора Cummins

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

PP2315

Турбонагнетатель

3803338

Турбонагнетатель

2

Recon equivalent 3803338 RX

1

201048

Connection with a lining

1

2

201049

Connection with a lining

1

3

3177942

The Lining турбонагнетателя

1

4

3023066

The Sealing ring

2

5

3088371

Dustproof consolidation

1

3594104

Турбонагнетатель

1

6

3525220

The compressor Case

1

7

3528109

The Tape collar

1

8

3519535

The Counternut

1

M11 X 1.00.

9

3523420

The compressor Driving wheel турбонагнетателя

1

10

3525073

The Complete set of bolts with шестигранной a head

4

M8 x 1.25 x 25

11

3504967

The Flat washer

4

12

3524421

Диффузор турбонагнетателя

1

13

3502449

The Sealing ring of rectangular section

1

14

3521442

The Sealing ring with a backlash

1

15

3523980

Маслоотражательная a washer

1

16

3524419

Маслоотражатель

1

17

3524418

The Adjusting lining

1

18

3536914

The Persistent bearing турбонагнетателя

1

19

3591522

The Persistent ring

1

20

3519641

The Spring ring

4

21

3519627

The Bearing турбонагнетателя

1

22

3594555

The bearing Case турбонагнетателя

1

23

3536588

The Heat-shielding screen турбонагнетателя

1

24

3521225

The Complete set of bolts with шестигранной a head

8

M8 X 1.25 X 16.

25

3523412

The Sealing ring with a backlash

1

26

3521034

The Shaft and a wheel

1

27

3534168

The turbine Case

1

28

3529372

Standard шестигранная a nut

1

1/4 - 28 UNF.

29

3522904

The Lock plate

4

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

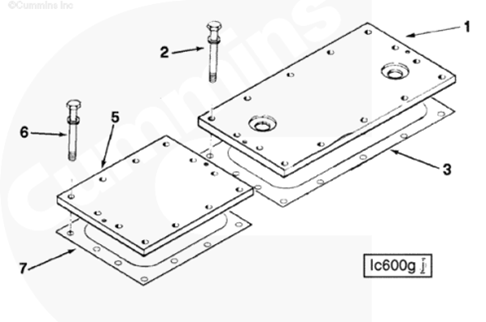

PP2315

Water Header Cover

1

3629066

Cover, Water Header

4

2

3010595

The Bolt with not dropping out washer

56

3/8 - 16 X 1 Inch.

3

3009324

Gasket, Water Header Cover

4

5

3629065

Cover, Water Header

1

6

3010595

The Bolt with not dropping out washer

12

3/8 - 16 X 1 Inch.

7

3009323

Gasket, Water Header Cover

1

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

PP6706-02

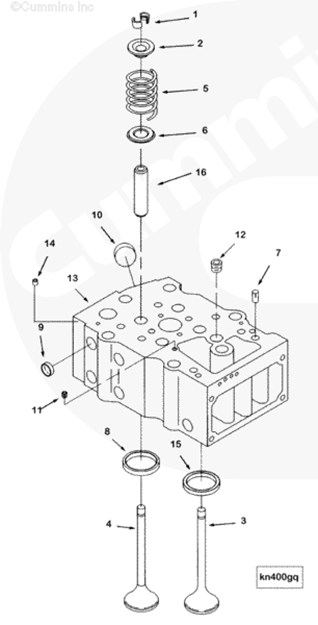

The Head of the block of cylinders

3811985

The Head of the block of cylinders

16

2

205094

The Plate of a spring of the valve

4

3803518

The Inlet valve

2

1

205091

A valve Cracker

4

3

3052820

The Inlet valve

2

3803528

The Final valve

2

1

205091

A valve Cracker

4

4

3088389

The Final valve

2

5

3633840

A valve Spring

4

6

3081081

Rotator, Valve

4

7

68445

Pin, Groove

2

8

3086192

A valve Saddle

2

9

205401

The Broad stopper

8

10

206224

The Broad stopper

2

11

67622

The Trumpet stopper

1

3/8 NPT.

12

S 915 A

The Trumpet stopper

1

1/2 NPT.

13

3081064

The Head of the block of cylinders

1

14

203933

The Broad stopper

1

15

3086193

A valve Saddle

2

16

3202210

Guide, Valve Stem

4

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

PP6756

Fitting, STC Oil Supply

3630877

Муфта with an external carving

1

1

3630740

The Sealing ring

1

2

3630878

The Union with an external carving

1

3634699

Муфта with an external carving

1

3

3634696

Муфта with an external carving

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

PS6012

Oil Drain Valve

Oil drain valve to be used

1

67946

The Flat washer

1

1 1/32 Inch.

2

3016316

Valve, Coupling

1

3

3023077

Nipple, Coupling

1

4

3201568

Plug, Coupling

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

PU6003

The Pulley of a drive of auxiliary units

Alternator drive pulley

1

3628895

The Epiploon

1

3179944

Pulley, Accessory Drive

1

2

3076346

Sleeve, Wear

1

3

3628939

Pulley, Accessory Drive

1

4

3200287

Seal, Keyway

1

5

3628894

Dustproof consolidation

1

3803852

Kit, Kv Pose Seal

1

190397

Sleeve, Wear

1

3200287

Seal, Keyway

1

3628894

Dustproof consolidation

1

3628895

The Epiploon

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

RB6044

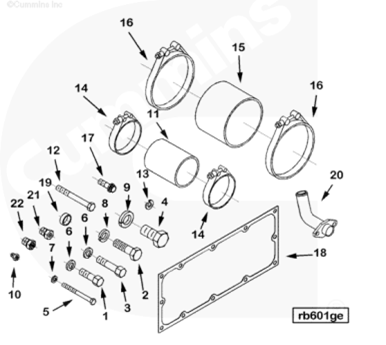

Subbase

Subbase mounting parts for

1

S 103 A

The Bolt with шестигранной a head

12

5/8 - 11 X 2 Inch.

2

S 123

The Bolt with шестигранной a head

8

3/4 - 10 X 2 1/2 Inch.

3

S 139

The Bolt with шестигранной a head

12

5/8 - 11 X 2 3/4 Inch.

4

S 199

The Bolt with шестигранной a head

8

1 - 8 X 2 Inch.

5

S 199 A

The Bolt with шестигранной a head

4

3/8 - 16 X 4 Inch.

6

S 603

The Lock washer

24

5/8 Inch.

7

S 604

The Lock washer

4

3/8 Inch.

8

S 611

The Lock washer

8

3/4 Inch.

9

S 613

The Lock washer

8

1 Inch.

10

S 955

Bushing, Reducing Pipe

3

11

63223

The Flat hose

4

12

108604

The Bolt with шестигранной a head

6

1/2 - 13 X 4 1/2 Inch.

13

111445

Lckwshr

22

14

135144

Clamp, T Bolt

8

3 1/2 Inch.

15

149274

The Flat hose

2

16

149437

Clamp, T Bolt

4

5 1/2 Inch.

17

206041

The Bolt with a 12-faced head

16

1/2 - 13 X 1 1/2 Inch.

18

3175856

Gasket, Hand Hole

2

19

3177556

The Sealing ring of rectangular section

4

20

3178466

The Pumping over water branch pipe

4

21

3628002

Bushing, Reducing Pipe

1

22

3628003

Bushing, Reducing Pipe

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

The detail Name

K-in

Notes

SP6004

Распорка the fan

3.00inch fan spacer.

1

218792

Spacer, Fan Pilot

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

ST6060-04

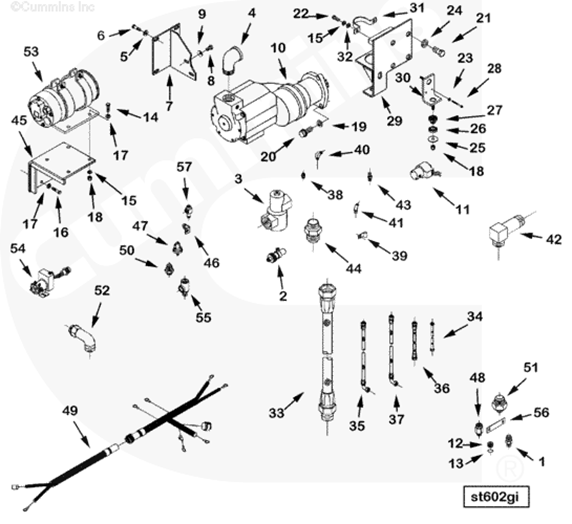

Prelub Air Starter RB

Ingersoll Rand air starter

1

105503

The Union with an external carving

1

2

3022696

Lubricator, Air Stg Motor

1

3

3022697

Valve, Air Relay

1

4

3026796

Elbow, Plain Street Pipe

1

5

108330

The Flat washer

4

3/8 Inch.

6

136574

The Bolt with шестигранной a head

4

3/8 - 16 X 1 1/4"

7

3026802

Brace, Starting Motor

1

8

3036230

The Bolt with шестигранной a head

2

M10 x 1.50 x 20

9

3043642

Washer, Spring

2

10

3037489

Motor, Air Starting

1

11

3044613

Valve, Air Starter

1

3046202

The Carving stopper

1

3/4 - 16 UNF

12

3040810

The Carving stopper

1

13

3046201

The Sealing ring

1

14

S 103 D

The Bolt with шестигранной a head

4

3/8 - 16 X 1 1/4 Inch.

15

S 604

The Lock washer

6

3/8 Inch.

16

108707

The Bolt with шестигранной a head

4

3/8 - 16 X 1 1/2 Inch.

17

3036460

Washer, Spring

8

18

3175239

The Counternut

6

3/8 - 16 Inch.

19

S 603

The Lock washer

3

5/8 Inch.

20

158250

The Bolt with a 12-faced head

3

5/8 - 11 X 1 3/4 Inch.

21

S 111 B

The Bolt with шестигранной a head

2

3/4 - 10 X 1 1/2 Inch.

22

S 112

The Bolt with шестигранной a head

2

3/8 - 16 X 1 Inch.

23

S 607

The Lock washer

2

#10.

24

S 611

The Lock washer

2

3/4 Inch.

25

3033800

The Flat washer

2

3/8 Inch.

26

3035083

Виброизолятор

2

27

3035084

Виброизолятор

2

28

3067884

The Bolt with a face head

2

#10 - 24 X 2 Inch.

29

3627756

Bracket, Air Control Valve

1

30

3632900

Bracket, Solenoid

1

31

3627763

Clamp, Retaining

1

32

3628902

The Flat washer

2

33

AS 2401 34MS

The Flexible hose

1

34

AK 4010 SS

The Flexible hose

1

35

AS 4011 SL

The Flexible hose

1

36

AS 4014 40SS

The Flexible hose

1

37

AS 4046 SL

The Flexible hose

1

38

68138

The Union with an external carving

1

39

108722

The Clip

4

40

112105

Elbow, Male Adapter

2

41

3175773

Elbow, Male Adapter

2

42

3627793

Elbow, Male Adapter

1

43

3627856

The Union with an external carving

2

44

3627799

The Union with an external carving

1

45

3628476

Bracket, Pump

1

46

3628553

A tube Arm

1

47

3628750

The pressure Gauge

1

48

3633246

The Return valve

1

49

4017424

The Plait of wires

1

3628961

Муфта with an external carving

1

50

3100550

Муфта with an external carving

1

3628962

Муфта with an external carving

1

51

3100549

Муфта with an external carving

1

52

3628963

The Knee with an external carving

1

53

3628965

Primer, Engine Lubricating

1

54

3633715

Switch, Relay

1

55

3633245

Tee, Plain Adapter

1

56

3629067

Fastening распорки

1

57

3629698

Tee, Street Pipe

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

WF6010-06

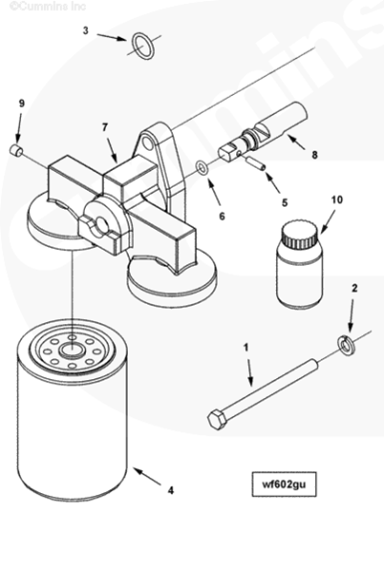

The Safety lock from corrosion

Two corrosion resistor heads

1

S 197

The Bolt with шестигранной a head

4

3/8 - 16 X 4 1/4 Inch.

2

S 604

The Lock washer

4

3/8 Inch.

3

145528

The Sealing ring

8

4

4058964

Resistor, Corrosion

4

Buy from Cummins Filtration

3175452

Head, Wtr Filter Assy

2

5

8306

The Cylindrical pin

1

6

70415

The Sealing ring

1

7

3175453

Head, Corrosion Resistor

1

8

3177040

Shaft, Shutoff Valve

1

9

3628604

The Trumpet stopper

1

10

3888312

Inhibitor, Corrosion

11

Buy from Cummins Filtration

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

The detail Name

K-in

Notes

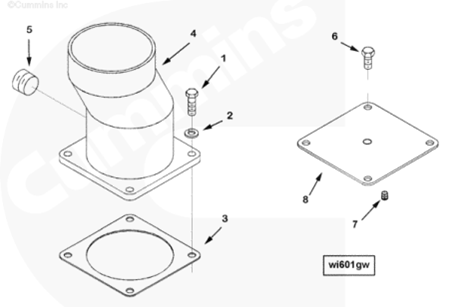

WI6008-02

The Entrance water branch pipe

Water inlet connection with Belaz. For KT38/50 engines.

1

S 103 D

The Bolt with шестигранной a head

4

3/8 - 16 X 1 1/4 Inch.

2

S 604

The Lock washer

4

3/8 Inch.

3

3179035

Gasket, Wtr Trf Connection

2

4

3628078

The Entrance water branch pipe

1

5

3628608

The Trumpet stopper

1

6

S 109

The Bolt with шестигранной a head

4

3/8 - 16 X 7/8 Inch.

7

3628605

The Trumpet stopper

1

1/4-18

8

3629861

Cover, Water Transfer

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

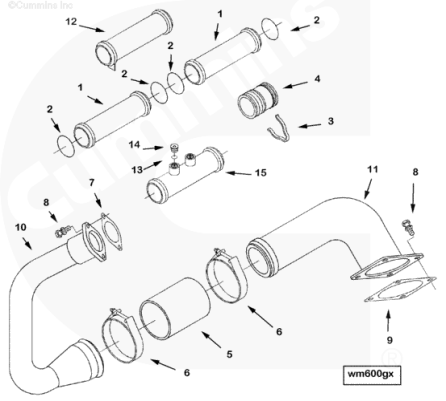

WM6011-02

Water Transfer Tubes

Water transfer tubes for

with: KTTA50-C, KTTA50-L,

1

206709

Tube, Water Transfer

13

2

3028291

The Sealing ring

32

3

205976

The Spring ring

1

4

3002956

Tube, Wtr Transfer Lb

1

5

60985

The Flat hose

1

6

3633972

Clamp, T Bolt

2

7

207515

Connection with a lining

1

8

3010596

The Bolt with not dropping out washer

6

3/8 - 16 X 1 1/4 Inch.

9

3050944

Connection with a lining

1

10

3178319

Water перепускная a pipe

1

11

3178320

Water перепускная a pipe

1

12

3040710

Tube, Water Transfer

1

3037536

The Carving stopper

2

9/16 - 18 UNF

13

3037537

The Sealing ring

2

14

3040813

The Carving stopper

2

15

3629540

Tube, Water Transfer

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

WO6009-03

The Target water branch pipe

Thermostat support and

AR11501

Hsg, Thm & Spt Assembly

2

1

3035844

The thermostat Case

2

2

3627961

Thermostat Consolidation

4

3

S 141

The Bolt with шестигранной a head

4

3/8 - 16 X 2 3/4 Inch.

4

S 163

The Bolt with шестигранной a head

8

3/8 - 16 X 3 1/4 Inch.

5

S 604

The Lock washer

12

3/8 Inch.

6

206443

Gasket, Thermostat Housing

2

7

3628607

The Trumpet stopper

2

3/4-14

8

3629205

The Thermostat

4

9

3627808

Support, Thm Housing

1

10

3628605

The Trumpet stopper

2

1/4-18

11

3628606

The Trumpet stopper

9

1/2-14

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses .

Number under the catalogue

the detail Name

k-in

Notes

WO6706

The Target water branch pipe

Male connector

fitting for compressor water

tube.

1

S 1002 A

The Union with an external carving

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

The detail Name

K-in

Notes

WR6001-01

Electroassembly armature

Accessories, wiring

1

3629161

The Plait of wires

1

2

S 103 D

The Bolt with шестигранной a head

2

3/8 - 16 X 1 1/4 Inch.

3

S 604

The Lock washer

2

3/8 Inch.

4

69911 A

The Clip

7

5

70262

The Lock washer

2

#6.

6

70310

Screw, Pan Head Cap

2

#6 - 32 X 3/8 Inch.

7

180371

The Clip

3

8

3068528

The Clip

2

9

3627719

Brace, Wiring

1

10

108722

The Clip

2

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

the detail Name

k-in

Notes

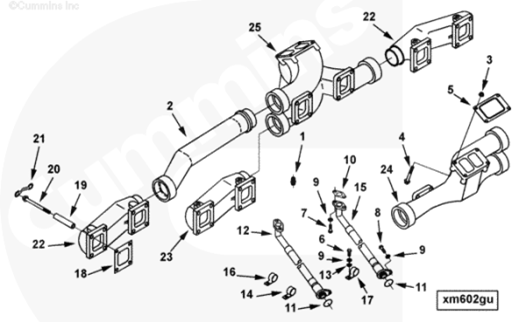

XM6018-05

Exhaust Manifolds

Dry pulse exhaust manifolds

KTA50-L and KTA50-C1800

engines.

1

118346

Муфта with an external carving

2

2

3043032

Pipe, Exhaust Outlet

2

3

3626804

The Counternut

8

3/8 - 24 UNF.

4

3627095

The Bolt with шестигранной a head

8

5

3630452

The Lining турбонагнетателя

2

6

S 109

The Bolt with шестигранной a head

1

3/8 - 16 X 7/8 Inch.

7

S 112

The Bolt with шестигранной a head

4

3/8 - 16 X 1 Inch.

8

S 172 B

The Bolt with шестигранной a head

6

3/8 - 16 x 1 1/8 inch

9

S 604

The Lock washer

8

3/8 Inch.

10

201048

Connection with a lining

3

11

216187

The Sealing ring

3

12

3632336

The Flexible hose

2

13

3628902

The Flat washer

2

14

3629451

The Clip

2

15

3632337

The Flexible hose

1

16

3629452

The Clip

2

17

3629453

The Clip

1

18

3037821

The Lining of a final collector

16

19

3046287

Fastening распорки

64

20

3066497

The Bolt with a flange and шестигранной a head

64

7/16 - 14 X 5 1/2 Inch.

21

3628969

The Lock plate

32

22

3630032

The Final collector

4

23

3630033

The Final collector

2

24

3630505

The Final collector

1

25

3630506

The Final collector

1

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

№ poses.

Number under the catalogue

The detail Name

K-in

Notes

XS6013-01

Exhaust Connection

Two 5.5 inch diameter adapter

1

3176521

Cover, Protective

2

2

3178255

Tube, Exhaust Outlet

2

3

3626944

The Tape collar

2

© 2000-2011 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.

Please, address to us.
